Anyone shipping or transporting hazmat by air within the U.S. must follow the required Hazardous Materials Regulations. However, the Pipeline and Hazardous Materials Safety Administration provides an alternative, allowing shippers and transporters to follow the International Civil Aviation Organization’s Technical Instructions for the Safe Transport of Dangerous Goods by Air, also known as ICAO Technical Instructions, which allows for greater flexibility and fewer restrictions for those needing to transport hazmat by air domestically and internationally.
With several different agencies weighing in with regulations for transporting hazardous materials, or hazmat, by air, it’s important for shippers and carriers to understand the differences and make sure shipments are properly prepared and transported.
Anyone shipping or transporting hazmat by air within the U.S. must follow the Hazardous Materials Regulations (HMR) required by the Pipeline and Hazardous Materials Safety Administration (PHMSA). However, PHMSA provides an alternative, allowing shippers and transporters to follow the International Civil Aviation Organization’s (ICAO) Technical Instructions for the Safe Transport of Dangerous Goods by Air, also known as the ICAO Technical Instructions (ICAO TI). Following the ICAO TI allows for greater flexibility and fewer restrictions for those needing to transport hazmat by air domestically and internationally. However, as required by the HMR, shipments offered under the ICAO TI must also conform to:
While the Pipeline and Hazardous Materials Safety Administration (PHMSA) and Federal Aviation Administration (FAA) regulate the transport of hazardous materials (hazmat) by air in the U.S., two international agencies have created their own versions of regulations for transport of hazmat by air.
ICAO
The International Civil Aviation Organization (ICAO) is a specialized agency of the United Nations that is funded and directed by 193 member states to support diplomacy and cooperation in air transportation. One of ICAO’s responsibilities is to establish regulations for the international transport of hazardous materials. These regulations are organized in ICAO’s Technical Instructions (ICAO TI). The ICAO TI are authorized by the Pipeline and Hazardous Material Safety Administration (PHMSA) for use within the U.S., and in some situations may be used in place of the Hazardous Materials Regulations (HMR).
IATA
A third version of regulations is stricter than either the U.S. hazmat rules or the ICAO TI. The International Air Transport Association (IATA) is a trade association consisting of 290 airlines worldwide. Carrying 82% of the world’s air traffic, IATA members include many of the world’s leading passenger and cargo airlines. To make international regulations easier to understand and comply with, IATA created its own regulations for the international transportation of dangerous goods by air, known as the IATA Dangerous Goods Regulations (IATA DGR). The IATA DGR is based on the ICAO TI, but in some cases stricter.
The IATA DGR is not specifically authorized by the PHMSA for use within the U.S. However, since the IATA DGR is stricter, compliance with the IATA DGR ensures compliance with the ICAO TI, which is authorized by PHMSA.
The International Air Transport Association (IATA) regulations helps to ensure safety when dangerous goods are transported by air.
The following explanations cover the IATA regulations at a high level. This information is designed to give a general understanding of the IATA requirements and is not a replacement for the IATA regulations.
The most current and official IATA regulations must be consulted for full compliance. The IATA regulations are available by visiting www.iata.org.
The International Air Transport Association (IATA) is a trade association of approximately 290 airlines representing 117 countries from around the world. IATA member airlines are responsible for 82 percent of the world’s air traffic. Members include air carriers that operate both cargo and passenger aircraft.
IATA created its own policies for the international transportation of dangerous goods by air, known as the IATA Dangerous Goods Regulations (IATA DGR). The IATA DGR was created, in part, to reduce the risk of transporting dangerous goods by air while keeping country- and airline-specific requirements in mind. The IATA DGR is an easy-to-use manual based on the International Civil Aviation Organization (ICAO) Technical Instructions (ICAO TI).
The IATA DGR must be used by all IATA members transporting dangerous goods by air. Shippers offering dangerous goods for transportation by air with an IATA member airline must use the IATA DGR to properly classify, package, mark, label, and provide shipping papers for their cargo. The IATA DGR also applies to dangerous goods that are interlined from a non-member to a member of IATA.
The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) provide procedures for shippers and operators to safely transport articles and substances with hazardous properties by air on commercial air transport.
For the purposes of these regulations, the term “shippers” means all shippers and agents that offer consignments of dangerous goods to operators. “Operator” means a person, organization, or enterprise engaged in or offering to engage in an aircraft operation.
The detailed regulations enable shippers to correctly prepare a consignment of dangerous goods for air transport. They help freight forwarders and airline/ground handling agent dangerous goods acceptance personnel to verify that the consignment of dangerous goods complies with the requirements.
General guide to the process
The following step-by-step procedure describes how to properly classify, pack, mark, label, and document consignments of dangerous goods. However, this simplified overview is intended as guidance only. Be sure to check the full regulation text for the details that apply to each step.
When transporting cargo, it’s always good know what is considered dangerous goods. The International Air Transport Association’s (IATA) Dangerous Goods Regulations (DGR) consider dangerous goods as articles or substances which can pose a hazard to health, safety, property, or the environment and materials which are included in the list of dangerous goods.
Before any dangerous goods can be transported by air, it is extremely important that the goods are classified properly. The IATA DGR requires shippers to properly classify and identify the dangerous goods.
All aspects of the shipping process, such as packaging, marking, and labeling, are determined by how you classify your material, which is why the classification process is the single most important step when shipping dangerous goods. Classifying dangerous goods according to the IATA DGR can be done by answering three questions:
Some dangerous goods are easy to classify because the material and their hazard(s) are well known. For example, gasoline is a well-known flammable liquid. Other materials, such as mixtures or new products, may be difficult to classify because the hazards are unknown. In this case you must have the material tested to determine the hazardous properties.
Dangerous goods must meet one or more of the hazard class definitions. There are nine hazard classes listed in the International Air Transport Association’s (IATA) Dangerous Goods Regulation (DGR) — some of which are further subdivided into divisions. The definitions summarized below should be used as guidelines only. Complete specifications for each hazard class and division can be found in the IATA DGR Section 3.
Some dangerous goods are further subdivided into packing groups. The packing group indicates the degree of danger presented by the dangerous goods.
Packing groups have been developed for dangerous goods in Class 3, Class 4, Division 5.1, Division 6.1 and Class 8 materials. Some hazardous materials are assigned more than one packing group. Because packing groups impact the type of packaging that can be used, it is critical that each material is assigned to the correct one. The criteria for determining packing groups are included in the International Air Transport Association’s (IATA) Dangerous Goods Regulations (DGR) as follows:
Some substances in Class 9, liquids in Division 5.1, and waste in Division 6.2 have been assigned packing groups according to the List of Dangerous Goods. Requirements for a specific packaging performance level can be found in the applicable packing instruction.
Occasionally, there will be situations when dangerous goods meet the definition of more than one hazard class, and it’s not specifically listed by name in the List of Dangerous Goods. In this case, you must determine which of the hazard classes will be the primary hazard. Typically, the hazard class that poses the greater hazard during transport would take precedence and become the primary hazard. This determination will impact your selection of the material’s proper shipping name and ultimately, how the material is identified on the required shipper’s declaration for dangerous goods, packaged, marked, labeled, and placarded.
Dangerous goods must be classed according to the precedence of hazard table located in Section 3.10.
The International Air Transport Association (IATA) has provisions that allow a shipper to classify and ship unknown dangerous goods to a laboratory for analysis. The samples of unknown dangerous goods may be classified by the shipper and assigned a tentative shipping description, based on the:
Proper shipping name
When shipping samples of unknown dangerous goods the shipper must include the word “sample” in conjunction with the proper shipping name, for example:
When a not-otherwise-specified (n.o.s.) entry is used for the sample, the proper shipping name does not need to include the technical name.
The most severe packing group possible must be used for the selected proper shipping name.
Limitations
Samples using the exception must not be:
Self-reactive substances and organic peroxides samples must meet the conditions in IATA DGR Sections 3.4.1.2.5 and 3.5.2.6, respectively.
All samples must be transported in combination packaging with a net weight not exceeding 2.5 kgs and not packed with any other goods.
Most of us never give a second thought about the products we use every day such as our cell phones, aerosol hair spray, hand sanitizer, and lighters or e-cigarettes. These everyday products may seem harmless; however, when transported by air they can be very dangerous. Vibrations, static electricity, temperature, and pressure variations can cause items to leak, generate toxic fumes, start a fire, or even explode if they are not handled properly.
While some of these products may be too dangerous to be transported by aircraft, others may be transported by cargo aircraft only and some may be transported by passenger and cargo aircraft. The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) applies various limitations to dangerous goods transported by air to assist with keeping air travel safe.
The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) have forbidden substances with the following characteristics from being transported on aircraft. Substances are not permitted to be shipped if they are likely to:
Substances known to meet the description above are included in the List of Dangerous Goods in the IATA DGR Section 4.2. They are listed in light type (not bold) and contain the word “Forbidden” shown in Columns G – L.
Some dangerous goods may still be transported by air if listed as “Forbidden” in the List of Dangerous Goods if exempted by the appropriate country authority. The dangerous goods include:
Hidden or undeclared dangerous goods are, unfortunately, a common problem in the transportation industry. If not found, the hidden dangerous goods can cause a tragic incident, especially when transported by air. To reduce or eliminate hidden and undeclared dangerous goods, the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) require shippers offering certain commodities to verify by endorsement of the Air Waybill that no part of the package contents is dangerous. The commodities include:
The complete list of commodities can be found in the IATA DGR Section 2.2.
Commodity | Potential Hazards They May Contain |
---|---|
Aircraft Parts | Explosives, oxygen generators, paint, adhesives, batteries, fuel |
Auto Parts | Engines, carburetors, gas lines, or air bags |
Battery Powered Equipment | Wet or lithium batteries |
Breathing Apparatus | Cylinders of compressed gases or oxygen |
Camping Equipment | Batteries, flammable gas, flammable liquids, or flammable solids |
Dental Apparatus | Flammable resins/solvents, or radioactive materials |
Electrical Equipment | Magnetized materials, mercury or, wet or lithium batteries |
Frozen Foods | Dry ice |
Instruments (Barometer, thermometer) | Mercury |
Medical Equipment | Flammable liquids, oxidizers, corrosives, or batteries |
Pharmaceuticals | Flammable liquids, radioactive materials, or organic peroxides |
Photography Equipment | Lithium batteries, flammable liquids, corrosive materials, or organic peroxides |
Sporting Goods | Compressed gases, lithium batteries, propane torches, or aerosols |
Vaccines | Dry ice |
Some dangerous goods can only be transported on an aircraft if they are properly packaged, marked, and labeled by a fully qualified person. However, there are items listed in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) which may be brought onboard the aircraft by passengers and crew members, provided that the listed restrictions and limitations are adhered to.
The table in the IATA DGR Section 2.3.A provides details on the items which may be carried onboard the aircraft by passengers, in either their checked or carry-on baggage.
Some States (countries) may have more restrictive requirements for dangerous goods. The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) allow these States to have variations to the regulations for dangerous goods going to, from, or within that State. The variations are in addition to the requirements of the IATA DGR.
Airline operators have different capabilities and may not be able to accommodate all facets of dangerous goods. The IATA DGR allows airline operators to have variations to the regulations for dangerous goods being transported on their aircraft. The variations are in addition to the requirements of the IATA DGR.
The IATA DGR lists the State and operator variation code at the beginning of section that applies to all State and operators that have variations that apply to that section.
For example:
State variations
Each State (country) that has a variation in the IATA DGR is assigned a code. The code consists of three letters that identify the State, the last of which is always a “G” (Government), followed by numbers that identify the sequence of the variation.
For example, Australia’s code is AUG. Australia currently has five variations, 01-05. The third variation would be identified by AUG-03.
The List of State Variations is in Section 2.8.2. The variations are listed in alpha-numeric order according to the code assigned.
Operator variations
Each airline operator that has opted to have variations in the IATA DGR is assigned a code. The operator code is two alpha-numeric characters that identify the operator followed by numbers that identify the sequence of the variation. For example: United Parcel Service (UPS) code is 5X. UPS currently has 9 variations, 01-09. UPS’s fifth variation would be identified as 5X-05.
Every year over 1.25 million shipments of dangerous goods are transported by air, and this number is only expected to increase. With the increase in dangerous goods being shipped by air, it is imperative that safety regulations are properly adhered to.
When transporting cargo, it’s important to know what is considered dangerous goods. The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) consider dangerous goods as articles or substances which can pose a hazard to health, safety, property, or the environment and materials which are included in the list of dangerous goods.
Before any dangerous goods can be transported by air, it is extremely important that they are identified correctly. The IATA DGR requires shippers to properly classify and identify the dangerous goods.
Once familiar with and upon selecting the appropriate hazard class and packing group, the process of identifying the dangerous goods can begin. Identifying dangerous goods involves selecting the proper shipping name, selecting a generic or “not otherwise specified” (n.o.s.) name, and what to do with a mixture or solution.
If assistance is needed in identifying your dangerous goods, there are a few options available:
Proper shipping names
The List of Dangerous Goods is used to select the proper shipping name and contains approximately 3,000 substances likely to be transported by air. Using Column B in the List of Dangerous Goods, locate the name of the dangerous goods to be shipped. Only the names in bold type are proper shipping names. Portions of an entry that are not in bold type are not part of the proper shipping name but may be used.
If the UN or ID number of the substance is known, but not the proper shipping name, use the Cross-reference list to locate the proper shipping name. Then, locate the substance in the List of Dangerous Goods to access additional shipping information.
Generic and n.o.s. names
If the name of the substance you are shipping is not contained in the List of Dangerous Goods, you must first make sure it is not forbidden for transport by referring to the IATA DGR Section 2.1. If your substance is not forbidden, select a generic or “not otherwise specified” (n.o.s.) description, found in the List of Generic and n.o.s. Proper Shipping Names of Section 4.1, that most accurately describes your material. For example:
Generic or n.o.s. proper shipping names followed by a star symbol must include a technical or chemical group name.
Mixtures and solutions
Dangerous goods that are a mixture or solution of one or more substances must be identified by the proper shipping name of the predominant substance. The appropriate word “mixture” or “solution” must be added to the proper shipping name. The applicable concentration of the mixture or solution may also be indicated in the proper shipping name. For example: Acetone 80% solution.
Keep in mind that if a mixture or solution is combined with a substance not considered a dangerous good and is diluted to a point where it no longer meets the definition of any hazard class, it would no longer be regulated by the IATA DGR.
When dangerous goods are shipped via air, the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) require that detailed information about the shipment must accompany the dangerous goods. There are two types of documentation required for an air shipment: the “Shipper’s Declaration of Dangerous Goods” (Shipper’s Declaration) and the air waybill. Each document has specific requirements, but the Shipper’s Declaration is the primary document for providing details on the dangerous goods shipment.
The Shipper’s Declaration can be provided:
Regardless of the method used, all required information must be provided.
Shippers have documentation requirements under the IATA DGR. The shipper is responsible for providing dangerous goods information to the operator (carrier/airline) as stated in the IATA DGR Section 8. Shippers must ensure the information provided on the forms is accurate and legible, and signed when provided to the operator at the time of shipment.
The Shipper’s Declaration must meet very detailed specifications, including:
Shippers must avoid adding any irrelevant information on the declaration. If both dangerous goods and non-dangerous goods are listed on the declaration, the dangerous goods must be listed first or highlighted or emphasized in some way to call them out.
If a Shipper’s Declaration form was created by a computer, then the form must still meet the specifications identified in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR).
The “Shipper’s Declaration for Dangerous Goods” form must be completed strictly according to the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 8.1.6, “Detailed Instructions for Completing the Declaration Form.” The shipper is required to enter all details on the Shipper’s Declaration, except that the “Air waybill number,” “Airport of Departure,” and “Airport of Destination,” may be entered or amended by the shipper, the shipper’s agent, or by the operator. Any other details can be entered only by the shipper, or persons/organizations employed by the shipper to act on the shipper’s behalf.
The Shipper’s Declaration for Dangerous Goods must contain the following information:
In addition, other information may be required by the national authority depending on the mode of transport. For example, this additional information could include the flash point or flash point range in degrees Celsius.
Copies and recordkeeping
If using paper declarations, the shipper must provide the operator with two signed copies of the Shipper’s Declaration. The operator will keep one copy and the other copy will be sent with the shipment. Carbon copies are acceptable. Only the original operator is required to keep the copy; if a shipment is transhipped, a photocopy is acceptable.
If the declaration is via electronic data processing (EDP) or electronic data interchange (EDI), the data must be able to immediately be produced as a hard copy paper document, including all of the pertinent details.
The shipper is required to keep the Shipper’s Declaration for at least three months. If the declarations are kept electronically, the shipper must be able to print them.
The following dangerous goods do not require a Shipper’s Declaration:
Special circumstances
Take note of the following special circumstances surrounding the Shipper’s Declaration:
Additional documentation required
The following additional documentation requirements must be followed when applicable:
If: | Then: |
---|---|
Dangerous goods are shipped as authorized by Special Provision A1 or A2 | They must be accompanied by:
|
Dangerous goods are shipped in:
| They must be accompanied by a copy of approval document(s). |
Organic peroxides and self-reactive substances require an approval prior to transport under the provisions of 3.5.2.3.1 or 3.4.1.2.4.1 | A copy of the approval must be attached to the Shipper’s Declaration. |
Dangerous goods are shipped under exemption (see 1.2.6) | A copy of the exemption from all applicable States must accompany the consignment. |
Air waybills are simply documents that give more detail about the cargo being shipped. When dangerous goods are involved, air waybills have additional requirements as provided in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 8.2.
The “Handling Information” section of an air waybill accompanying dangerous goods must include:
If a Shipper’s Declaration is not required for the shipment, the “Nature and Quantity of Goods” box on an air waybill must show the following:
Excepted quantities
The requirements specified above for the “Handling Information” and “Nature and Quantity of Goods” do not apply to “excepted quantities of dangerous goods,” but the air waybill must reflect this information. The air waybill’s “Nature and Quantity of Goods” box must state, “Dangerous Goods in Excepted Quantities” along with the number of packages (unless these are the only packages within the consignment).
When dangerous goods are shipped via air under the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR), packages must meet the marking and labeling requirements.
The person or entity offering the dangerous goods for transportation by air (the shipper) is responsible for the appropriate markings and labels for packages, including the markings and labels for overpacks. The shipper must ensure packagings are big enough to accommodate all required markings and labels.
Unless otherwise stated in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR), the outside of each package must be durably and legibly marked with the:
Note there are special marking requirements for the following materials; consult the IATA DGR for more details:
Outer packagings containing more than one dangerous good must be marked for each dangerous good.
Marking specifications and sizes
The UN/ID number and “overpack” marks must be at least 12 mm high. If a package meets any one of the following, the UN/ID number must be at least 6 mm high:
The UN/ID number must be reduced, but still viewable (an appropriate size), if a package is 5 liters capacity or less or 5 kilograms maximum net weight.
Overpack marks displaying the word “Overpack” should be 6 millimeters if the packages are 30 liters or 30 kilograms capacity or less.
Limited quantity markings
Dangerous goods in limited quantities must be marked with the limited quantities marking. The marking is as follows:
Each side of the marking must be 100 mm (approximately 4 inches) and the black diamond outline must be 2 mm wide.
If necessary to fit onto the package, the marking can be made smaller. The marking can be no less than 50 mm per side, with the black diamond outline at least 1 mm wide.
Salvage markings
Salvage packaging must be marked with the dangerous good’s proper shipping name and the UN number. The package must also have “SALVAGE” marked on the package in letters at least 12 mm high.
Markings on empty packagings
Except for Class 7 materials, an empty package that previously contained dangerous goods requires markings unless it has been thoroughly cleaned and purged (in the case of infectious substances, before it can be returned to the shipper or shipped to another place, the empty packaging must be thoroughly disinfected/sanitized).
Lithium battery markings
Lithium battery shipments are required to display this lithium battery marking, with a minimum dimension of 100 millimeters high by 100 millimeters wide, with hatching at least 5 mm wide:
A lithium battery marking may be reduced in size if the size of the package requires it, but no less than 100 millimeters by 70 millimeters.
If the UN/ID number varies among the types of batteries in a single package, then all UN/ID numbers must be indicated on one or more markings.
In certain cases, lithium battery packages must display both the lithium battery mark and the lithium battery Class 9 hazard label. See the IATA DGR Section 7.1.5.5.4 for more details.
Orientation arrows
Arrows (other than orientation arrows) cannot be placed on a package or overpack containing liquid dangerous goods.
Overpack markings
If the markings aren’t visible through the overpack, then the overpack must be marked accordingly. An “overpack” marking must appear on the outside of the overpack along with other required markings (except for net quantity of each package, unless the overpack contains UN1845, the total quantity of dry ice within the overpack must be marked).
However, if an overpack contains more than one UN number, then the total quantity of dangerous goods should be shown by UN number.
If a shipment contains more than one overpack, then each one must have some type of identification along with the total quantity of dangerous goods.
Limited quantity markings are also required on the overpack, unless the limited quantity marking on the packages is visible.
When labeling a package, shippers have certain responsibilities under the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) when a package or overpack is offered to the operator for shipment. Shippers must remove or cover any irrelevant labeling on packages or overpacks. They must ensure that labels are durable and meet the specifications in the regulations (color, size, etc.). Shippers must also ensure labels are placed in the appropriate spot, on a contrasting background (or outlined with a dotted line or solid line), and include any additional details as required.
Packages must be labeled for each dangerous substance in a package.
Label specifications and sizes
Generally, labels must be diamond-shaped and be at least 100 millimeters by 100 millimeters. They require a line inside the edge of the label forming a diamond that’s about 5 millimeters from the outside of the line to the edge of the label. Labels must display the class or division number.
“Worded” labels are acceptable (the hazard can be provided on the lower half of the label in addition to the division number or compatibility group). See the IATA DGR Section 7.3 for hazard labels and Section 7.4 for handling label colors, sizes, specifications, and examples.
Label placement
Empty packaging labels
If a package once contained dangerous goods, it must be marked and labeled as if it still contained the dangerous goods; however, if the packaging has been thoroughly cleaned and purged (or disinfected if it contained infectious substances), labels are not required.
Other labels
See the IATA DGR Sections 7.4.4 through 7.4.G for handling labels specifications for the following labels:
Package orientation labels aren’t required on certain types of packages; for example, liquid dangerous goods in inner packages containing 120 milliliters or less (packed in absorbent materials) or dangerous goods in inner packagings not exceeding 500 milliliters that are packed in gas-tight packagings. See the IATA DGR Section 7.2.4.4 for a complete listing.
Other markings and labels
Markings that indicate how a package must be handled or stored, or symbols on labels that indicate this information, can also be displayed on a package if appropriate. International Organization for Standardization (ISO) symbols are recommended.
Operators have responsibilities under the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) when accepting, handling, and loading dangerous goods. Operators may impose additional requirements when transporting dangerous goods. Ground handling agents can carry out the functions of an operator.
The complete instructions for accepting, handling, and loading dangerous goods can be found in the IATA DGR Section 9. Some dangerous goods materials may require special handling; see the IATA DGR Section 9.3 for details:
Material | Reference IATA DGR section number |
---|---|
Magnetized materials | 9.3.9 |
Dry ice (carbon dioxide, solid) | 9.3.10 |
Cryogenic liquids | 9.3.11 |
Expandable polymeric beads and plastics moulding compound | 9.3.12 |
Live animals | 9.3.13 |
Wheelchairs or other battery-powered mobility aids as checked baggage | 9.3.14 |
Self-reactive substances and organic peroxides | 9.3.15 |
Intermediate bulk containers (IBCs) | 9.3.16 |
Operators’ acceptance staff must be trained to identify and detect dangerous goods present as general cargo. Information about the following must be provided to cargo acceptance staff:
Staff should seek confirmation from shippers about the contents of any item of cargo if there are suspicions that it contains dangerous goods to help prevent undeclared dangerous goods on an aircraft. Many ordinary looking items may contain dangerous goods; for example, car parts, electrical equipment, household goods, and battery-powered devices/equipment. See a complete listing in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 2.2.
Operators are prohibited from accepting packages or overpacks with dangerous goods or a unit load device containing dangerous goods, or a freight container containing radioactive material for transport aboard an aircraft unless one of the following is met:
If a Shipper’s Declaration is used, then one copy of the declaration form must accompany the consignment to final destination, and the other copy must be retained by the operator at a location on the ground where it’s available to access.
If the information is provided electronically, the information must be available to the operator during transport and the data must be able to be produced as a paper document. If a paper document is provided, the data must be presented as required by IATA DGR Section 8.
Before a consignment is first accepted for carriage by air, the operator must use a checklist to verify:
Operators must identify the person who performs the check.
There are exceptions to these procedures; see the table in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 9.1.3.3.
Dangerous goods cannot be carried in the aircraft cabin with passengers or on the flight deck (unless permitted under certain parts of the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR)).
Dangerous goods may be carried in a main deck cargo compartment of a passenger aircraft provided that the compartment meets all the certification requirements.
Dangerous goods that could react with one another cannot be stowed together on an aircraft. Segregation requirements can be found in the IATA DGR Section 9.3.2.
If a dangerous good displays the “Cargo Aircraft Only” label, then it is prohibited on passenger aircraft. If the shipment is for cargo aircraft only, then one of the following loading provisions apply:
There are some exceptions to this requirement provided in the IATA DGR Section 9.3.4.3.
Operators are required to ensure dangerous goods packages are protected from damage. Packages must be secure to prevent movement during transport.
Packages and overpacks must be inspected to ensure they are not leaking or damaged. Before loading on an aircraft, unit load devices must be free of leaks or damage.
If labels are lost or illegible, the operator is required to replace them (does not apply if the labels are missing or illegible when the package is accepted).
Before unloading from the aircraft or unit load device, packages and overpacks must be inspected for signs of damage or leaking. If damage or leaks are found, the area around the dangerous goods on the aircraft must be inspected for damage or contamination. Any contamination must be removed.
If packages contain infectious substances and are found to be damaged or leaking, the person who noticed the issue must avoid handling the package (or keep handling to a minimum), inspect surrounding areas, inform the public health authority or veterinary authority in the countries of transit to inform them of the potential danger, and notify the shipper and/or the consignee.
As soon as possible prior to the aircraft’s departure (but not after the aircraft moves under its own power), the operator of an aircraft in which dangerous goods are to be carried must:
The notification must include the items provided for in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 9.5.1.1.
Operators must report:
If there is an aircraft accident or serious incident where dangerous goods are involved, the operator immediately must provide information to emergency services responding to the accident or serious incident. The information includes data about the dangerous goods on board, as shown on the information to the pilot-in-command.
The operator must immediately provide the same information to the State authorities of the operator and the State in which the accident or serious incident occurred. The information must also be shared with emergency services responding to the incident.
Operators must report to their State when:
Operators must ensure training is provided to employees to enable them to carry out the dangerous goods transportation functions regarding passengers and their baggage, and cargo and mail. The training requirements can be found in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 1.5.
Operators must keep at least one copy of the documents or information appropriate to the transport by air of a dangerous goods consignment, for a minimum period of three months after the flight on which the dangerous goods were transported.
At a minimum, the documents which must be retained are the Shipper’s Declaration for Dangerous Goods and other applicable transport documents, the acceptance checklist (when this is in a form which requires completion), the identification of the person who performed the acceptance check and the written information to the pilot-in-command.
These documents or the information must be made available to the appropriate national authority upon request.
If a package or overpack containing dangerous goods or freight container containing radioactive material or unit load device containing dangerous goods was not accepted by an operator because of an error or omission by the shipper in packaging, labeling, marking or documentation, then a copy of the documentation and the checklist (when this is in a form which requires completion), and the identification of the person who performed the acceptance check should be retained for a minimum period of three months after the completion of the acceptance checklist.
If documents or information are kept electronically or in a computer system, they should be capable of being printed.
When dangerous goods are shipped via air under the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR), the shipper is responsible for all aspects of packing the dangerous goods. Transporting dangerous goods by air requires safety measures beyond those that apply to other modes of transport, including:
Shipper responsibilities
When preparing dangerous goods for transport by air, the shipper must:
The shipper must ensure that dangerous goods are placed only in approved freight containers or unit load devices.
States and operators commonly submit variations to the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR). Always check for applicable variations to packing requirements, which are listed in the IATA DGR Section 2.8:
Substances assigned to packing groups by experience rather than through the application of any technical criteria are shown in the List of Dangerous Goods. The list also indicates the packing group to which a listed substance is assigned. The packing group criteria for the classes and divisions are given in the IATA DGR Section 3.
Radioactive materials
The general packing requirements of this subsection do not apply to Class 7 Radioactive Materials. When packing radioactive materials, the shipper must comply with the packing instructions, packaging specifications, and performance testing in the IATA DGR Section 10.
Dangerous goods packagings must be strong enough to withstand the shocks and loadings normally encountered in transport. Packages must prevent any loss of contents that might be caused:
All packages, inner packagings, and receptacles must be closed according to manufacturer instructions. No dangerous residue may adhere to the outside of packages during transport. This applies to all packaging, including new, reconditioned, and remanufactured.
During shipping, packages regularly move between different modes of transport, from vehicles into warehouses and then onto aircraft, for example. To avoid damage and leakage from packages during transport, shippers should take this into account when selecting appropriate packaging or determining the suitability of an already packaged item.
Because of this, when transporting single steel or aluminum packagings in narrow-bodied aircraft, always provide overpacks, pallets, or another means to protect the bottom head and chime against abrasive effects experienced in loading the aircraft.
Also use overpacks for small single packagings (with a capacity of 2 L or less) to:
Manufacturers and subsequent distributors of packagings must provide:
Packaging test requirements
New, remanufactured, reused, or reconditioned packagings must meet the requirements of the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 6. The packagings must be manufactured and tested under a quality assurance program to ensure that they meet the applicable requirements.
Temperature and vibration resistance
The body and the closure of any packaging must be constructed to resist the effects of temperature and vibration that occur in normal conditions of transport. The closure device must be designed so it:
Closures on inner packagings containing liquids must be held securely, tightly, and effectively in place by secondary means.
When secondary means of closure cannot be used, the inner packaging must be:
Internal pressure standards
Packagings designed to retain liquid must be capable of withstanding, without leakage, an internal pressure that produces a pressure differential of the greater of the following:
The pressure related to the vapor pressure must be determined by one of the methods described in the IATA DGR Section 5.0.2.9.
Packagings for liquids
Packaging that will contain liquids must successfully pass a test showing it is leak-proof:
Packagings for solids that may become liquid
Packagings used for solids that may become liquid at temperatures encountered during air transport must be able to contain that substance in the liquid state.
Packagings for solids (both inner and single) that may be permitted by the packing instruction should not be used if they are unsuitable for containing liquids. For example, paper or plastic bags as inner packagings or unlined fiber drums as single packagings should not be used.
Where single packagings are permitted for these substances, only single packagings approved for solid materials may be used.
Inner packagings must be packed, secured, or cushioned in outer packaging so that they cannot:
Inner packagings containing liquids must be:
Inner packagings that could break or be punctured easily must be secured in the outer packagings with suitable cushioning material. Any leakage of contents must not impair the protective properties of the cushioning material or of the outer packaging.
“Inner packaging” versus “inner receptacle”
The inners of combination packagings are termed “inner packagings.” A glass bottle is an example of such an inner packaging.
The inners of composite packagings are termed “inner receptacles.” For example, the inner of a 6HA1 composite packaging is an “inner receptacle,” since it is not designed to perform a containment function without its outer packaging.
Using different inner packagings
If an outer packaging of a combination packaging has been successfully tested with different types of inner packagings, a variety of those different inner packagings may be assembled in the outer packaging.
If an equivalent level of performance is maintained, the following variations in inner packagings are also allowed without further testing of the package:
Overpacks used to enclose packages of dangerous goods must meet the following requirements:
The overpack may not impair the intended function of any inner package.
The overpack may also contain packages of goods not subject to the DGR.
Shippers are advised to check for applicable variations, which are listed in the IATA DGR Section 2.8. Numerous operator variations exist for using overpacks.
Package/Overpack reuse
Before reusing a packaging or an overpack, the shipper must remove or completely obliterate all inappropriate dangerous goods marks and labels.
Not all packages are intended to be reused for shipments of dangerous goods. When a package meets the conditions of the Dangerous Goods Packing Test Requirements and may be reused, the shipper must have access to:
Salvage packaging
Numerous operator variations exist for using salvage packaging. Be sure to check for applicable variations, which are listed in the IATA DGR Section 2.8. Damaged, defective, leaking, or non-conforming packages, or dangerous goods that have spilled or leaked, may be transported in salvage packagings that meet certain requirements.
To use salvage packagings, shippers must:
Salvage packagings must be single packagings of material that is resistant to any chemical or other action of the leaking or spilled dangerous goods. Only one damaged, defective, or leaking package may be packed in any single salvage packaging.
Damaged, defective, or leaking packages of certain dangerous goods of Classes 1, 2 and 7 and Division 6.2 must not be transported in salvage packagings. An exception to this restriction is available for clinical waste and medical waste under UN 3291.
Damaged, defective, or leaking packages of certain self-reactive substances in Division 4.1 or substances in Division 5.2 must not be transported in metal salvage packagings meeting Packing Group I requirements.
Parts of packagings that are in direct contact with dangerous goods:
Where necessary, the packagings must include a suitable inner coating or treatment.
Shippers must also ensure that absorbent materials and the materials of intermediate packagings for liquids do not react dangerously with the liquid.
Materials may not be used if they can be significantly softened or rendered brittle or permeable:
While certain packagings are specified in individual packing instructions, it is the responsibility of the shipper to ensure that all packagings are in every way compatible with the articles or substances contained in those packagings. Pay particular attention to the following:
Shippers must:
An outer packaging may contain more than one item of dangerous goods or other goods only as follows:
Additional requirements for packages containing radioactive material are found the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 10.5.

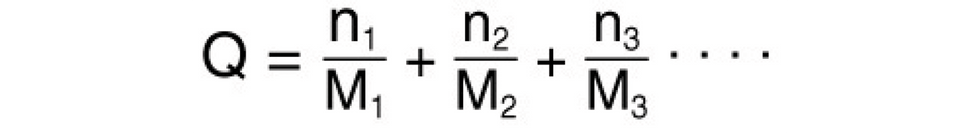

The calculated “Q” value must be:
UN 3316 is not permitted in the same outer packaging with other dangerous goods.
Certain lithium metal and lithium ion batteries are not permitted in the same outer packaging with most other dangerous goods.
For dangerous goods where the maximum quantity per package has a packing instruction reference shown in Column J or L in the List of Dangerous Goods, check and comply with the maximum net quantity per package as shown in the packing instruction.
The nature and the thickness of outer packaging must prevent friction during transport that could generate heat and alter the chemical stability of the contents.
Venting of packagings to reduce internal pressure that may develop by the evolution of gas from the contents is not permitted for air transport, except as specifically noted in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR).
With few exceptions, combination packagings with inner packagings containing liquid dangerous goods must be packed so that the closures on the inner packagings are upward. The upright position of the package must be indicated by the “Package Orientation” label. The words “This Side Up” or “This End Up” may also be displayed on the top cover of the package.
Orientation arrows are not required on outer packagings of combination packagings containing:
A package must be large enough to affix all required marks and labels.
Empty packaging that has contained dangerous goods must be treated the same as a package filled with that substance (including identifying, marking, labeling, and placarding) unless any hazard has been nullified. Acceptable methods of nullifying hazards include purging and thorough flushing of the packaging with a neutralizing agent.
Before an empty packaging that previously contained an infectious substance is referred to the shipper or sent elsewhere, the shipper must:
Freight containers, packagings, and overpacks used to transport radioactive material may only be used to store or transport other goods if decontaminated below the following levels:
When using wet ice as a coolant, it must not affect the integrity of the packaging.
In some cases, the authority of the State of origin may approve the use of packaging alternatives to those provided in the List of Dangerous Goods. The alternative packaging must meet the requirements of the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Sections 5.0.2 to 5.0.4.
When the List of Dangerous Goods specifies packagings listed in Table 5.0.C, the alternative packaging must also meet the requirements of Section 6 of the DGR.
For the type of alternative packaging being considered, the phrases “Not used in these Regulations” or “Specialized use only” may not appear in Table 5.0.C.
The State of origin must determine that the alternative packaging provides at least the same level of safety as if the substance were packed according to the method specified in the packing instruction in the List of Dangerous Goods.
The maximum net quantity of dangerous goods in the packaging may not exceed the quantity specified in the List of Dangerous Goods.
A copy of the document of approval must accompany each consignment being transported in the alternative packaging.
The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) specify package specifications, tests, and specification markings requirements for UN specification packages, packagings for refrigerated liquid gases, and limited quantity packagings. Two or three character codes are used for designating packaging (other than inner packagings).
Packaging type code | Packaging material code | Package qualifying codes |
---|---|---|
1 — Drum 2 — Reserved 3 — Jerrican 4 — Box 5 — Bag 6 — Composite packaging | A — Steel (all types and surface treatments) B — Aluminum C — Natural wood D — Plywood F — Reconstituted wood G — Fiberboard H — Plastic material L — Textile M — Paper, multi-wall N — Metal (other than steel or aluminum) P — Glass, porcelain, or stoneware (not used in these Regulations) | Some packagings show a code after the package code, with meanings as follows: — The letter “V” means a “Special Packaging” conforming to the requirements in IATA DGR Section 6.3.1.2, exemption from testing. “U” signifies a “Special Packaging” for infectious substances conforming to the requirements in IATA DGR Section 6.5.2. — The letter “W” signifies that the packaging, although of the same type indicated by the code, is manufactured to a specification different from that in IATA DGR Section 6.2 and is considered equivalent. — The letter “T” signifies a “Salvage Packaging” conforming to the requirements of IATA DGR Sections 5.0.1.6, 6.0.6, and Section 6.7. |
Other than for aerosols, the three or four character code is used to identify the type and material and construction and performance test standard, inner packagings are identified based on the material from which they are manufactured.

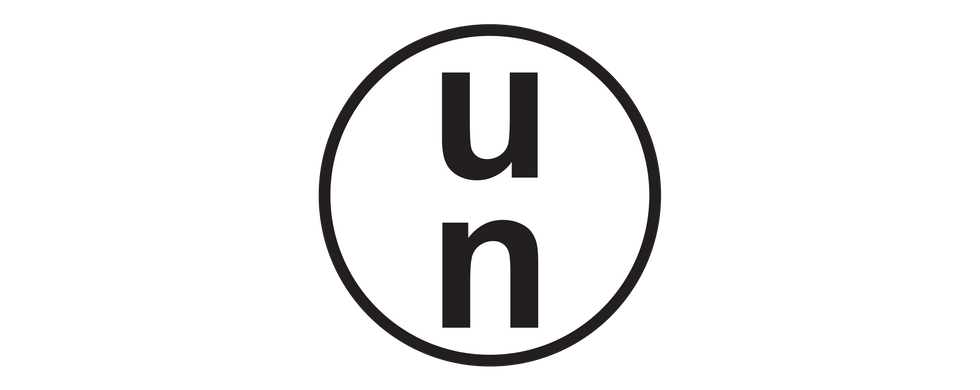

Specification markings indicate the packaging meets the tested design type. They’re meant to assist package manufacturers, package users, operators, and others.
Most single packagings and all outer packagings of combination packagings and of composite packagings that have been manufactured and tested must show durable, legible markings. If a package has a gross weight exceeding 30 kilograms, the marks must appear on the top or on the side of the package. The lettering must be at least 12 millimeters high (except for packagings of 30 liters capacity or less or of 30 kilograms maximum net weight; then they need to be at least 6 millimeters high).
If a packaging has a 5 liter capacity or less or 5 kilograms maximum net weight, the letters, numbers, and symbols must be an appropriate size.
Markings consist of the following:
Details for markings for metal drums and recycled plastic material can be found in the IATA DGR Sections 6.0.4.3 and 6.0.4.4.
Plastic, glass, and metal inner packagings must be well constructed. The following requirements also apply to inner packagings:
Marking reconditioned and remanufactured UN specification packagings
Most packagings that undergo a reconditioning process must bear the proper markings in a permanent form.
Salvage packagings
The requirements for markings on salvage packagings can be found in the IATA DGR Section 6.0.6.
Specifications and testing UN packaging
The specifications and testing for UN outer, single, and composite packaging can be found in the IATA DGR Sections 6.2 and 6.3. Manufacturers must comply with the criteria in these sections.
Construction and testing of cylinders, cryogenic receptacles, aerosol dispensers, and gas cartridges
Details on the construction and testing of cylinders, cryogenic receptacles, aerosol dispensers, and gas cartridges can be found in the IATA DGR Section 6.4.
Infectious substance packagings (Category A)
Details on infectious substance packagings can be found in the IATA DGR Section 6.5.
Tests for limited quantity packagings
Limited quantity packagings must undergo drop tests and stacking tests:
Construction and testing of IBCs
The IATA DGR Section 6.8 covers the construction and testing of intermediate bulk containers (IBCs) used for the air transport of “UN3077, Environmentally hazardous substance , solid, n.o.s.”
The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) address the transportation of radioactive materials by air.
The primary goal of the IATA’s radioactive materials requirements is to protect the general public, property, and the environment from radiation during transport by air. This is done by ensuring the packaging is appropriate for the radioactive material, placing administrative controls on the transport of the radioactive material (and if appropriate, approvals by competent authorities), and ensuring emergency response procedures are in place prior to transport.
The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) apply to the air transport of radioactive materials. This includes packaging design and packaging manufacturing along with the preparation of a radioactive material for loading/unloading, offering a radioactive material for transportation, and in-transit storage of the material.
The following sections of the IATA DGR are applicable to the transport of radioactive materials by air:
Certain radioactive materials are prohibited for transport on an aircraft, for example, packages that require external cooling systems, explosives, and pyrophoric liquids.
The IATA DGR on radioactive materials does not apply to:

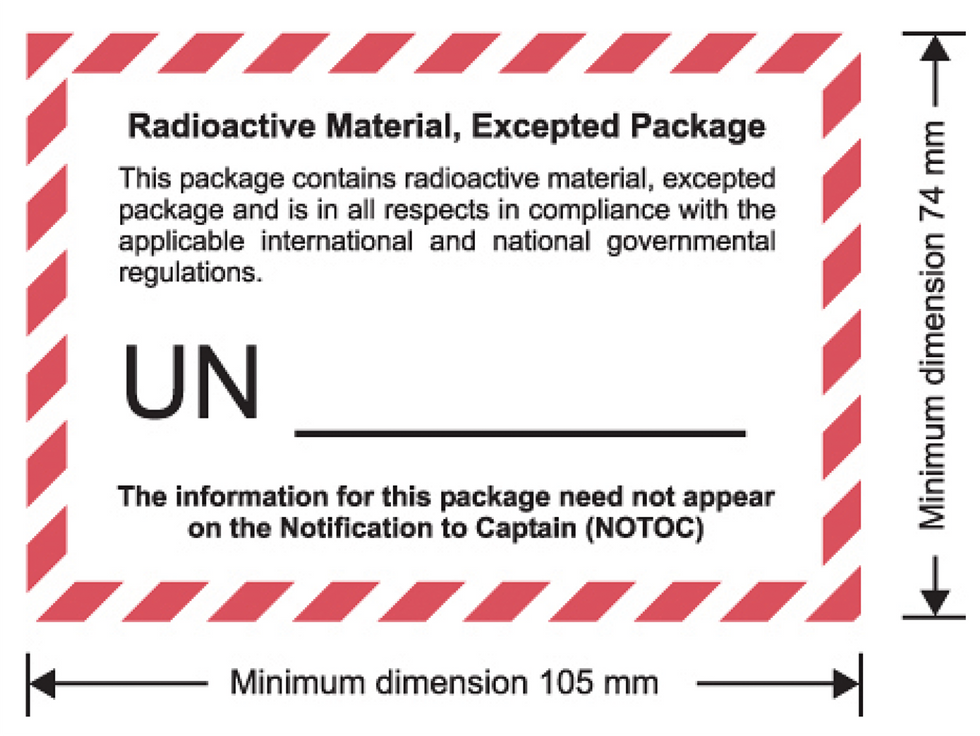

Specific provisions for excepted packages can be found in the IATA DGR Section 10.0.1.5.
Radioactive material transportation must be done under a Radiation Protection Program, which must adequately address radiation protection measures. The program must address measures that will be taken to keep doses to persons below dose limits and to keep exposures as low as possible. These measures must be related to the significance and chances of radiation exposures. Finally, the program must address applicable emergency response procedures.
If the competent authority requests to see the program documents, then such documents must be available to the competent authority.
More details on the Radiation Protection Program can be found in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 10.0.2.
A Management System, acceptable to the competent authority, must be in place to ensure compliance with the regulations is maintained. More details can be found in the IATA DGR Section 10.0.3.
Details on the classification of radioactive materials must be referenced in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 10.3.
Radioactive materials are assigned a proper shipping name as provided in the IATA DGR Section 10.4, Table 10.4.A. This section also includes a classification flowchart to help determine proper shipping name.
Radioactive materials packing is the responsibility of the shipper. Shippers must follow the package and packaging requirements found in the IATA DGR Sections 10.5 and 10.6.
Radioactive material packages, overpacks, or freight containers must be marked appropriately by the shipper. Markings must be durable, visible, able to withstand weather exposure, and displayed in a color that is in contrast with the background. In addition to the language required by the State of origin, English must be used.
The following markings are required on radioactive materials in Industrial Package Types IP-1, IP-2, and IP-3, Type A, Type B(U), Type B(M), and Type C packages:
Specific markings are required for Type A Packages, Type B Packages, Type C Packages, and Fissile Packages, which can be found in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Sections 10.7.1.3.4 through 10.7.1.3.7.
The “UN” letters must be at least 12 mm high, except if the packagings are 30 liters or 30 kilograms capacity or less, then they must be at least 6 mm in height (for packagings of 5 L or 5 kg or less when they must be of an appropriate size).
Package and overpack marks should be at least 12 mm high, except for packages of 30 L or 30 kg capacity or less when they should be at least 6 mm high.
When a shipper is preparing a package or an overpack containing radioactive material, the shipper is required to:
Overpacks
Unless all marks for dangerous goods in the overpack are visible, the overpack must be marked with:
In addition to marking, the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) require the shipper to label radioactive material packages, overpacks, or freight containers. Labels must be durable with a minimum dimension of 100 mm by 100 mm and diamond shaped. There must be an inside line about 5 mm from the edge of the diamond. The upper half of the label is reserved for the trefoil symbol and the lower half is for text and the class number (except for the Criticality Safety Index label (CSI)).
On a package of adequate size, place one set of labels on the same surface of the package near the proper shipping name mark. Labels must be placed next to the shipper’s or consignee’s address. If subsidiary labels apply, affix them next to the primary hazard labels on the same surface of the package.
If a “Cargo Aircraft Only” handling label is necessary, place it on the same surface as all other hazard labels. It must always be used on Type B(M) packages and on freight containers with such packages. Orientation labels are not necessary.
The Radioactive Material label together with any subsidiary hazard label(s), the Criticality Safety Index label (if applicable) and the “Cargo Aircraft Only” label (if applicable) must be affixed to two opposite sides of the package.
Comply with the following number of labels on a package or container:
Package or container type | Requirements |
---|---|
Freight container | Affix labels to all four sides of the container |
Cylindrical package | Affix two sets of labels opposite each other such that they are centered on opposite points of the circumference |
Very small packages including cylinders, where the two sets of labels would overlap | Only one label is required, provided it does not overlap itself |
Rigid overpack | Two sets of labels, affixed to opposite sides of the overpack |
Non-rigid overpack | Affix one set of labels to a durable tag secured to the overpack |
Shippers must for packages and overpacks:
Subsidiary hazard labels
If the radioactive material has other hazardous properties in one or more other hazard class, then the package must display the subsidiary label (except for non-flammable, non-toxic non-compressed gases).
Criticality Safety Index (CSI) label
Packages of fissile materials must display the Criticality Safety Index (CSI) label next to the radioactive hazard label.
Label markings
On labels, the contents, activity, and the transport index (on Category II and III Yellow labels) must be marked on the label. The Criticality Safety Index (CSI) must be displayed on a CSI label.
Contents must be as follows:
Activity means the maximum activity of the radioactive contents. It must be marked in becquerel (or multiples). The activity in curies (or multiples) can be provided in parentheses after the becquerel units. Use full or correct abbreviations of units. In the case of fissile materials, provide the total mass of fissile nuclides in grams or kilograms (and clearly indicate all units).
The transportation index determined by the IATA DGR Section 10.5.14.1 must be placed in the box provided, rounded up to one decimal place (tenths).
The Criticality Safety Index (CSI) must be placed in the box provided. If in an overpack or freight container, the CSI is the sum of the indexes of all packages in the container. For information on excepted packages of radioactive materials labeling, refer to the IATA DGR section 10.7.4.4.3.
Placarding large containers
Freight containers with radioactive materials must display four placards in addition to the labels. It is an option to display enlarged radioactive material labels that meet the IATA DGR Sections 10.7.7.1 to 10.7.7.3 (and if appropriate 10.7.7.4).
The shipper’s declaration of dangerous goods and an air waybill must be completed for radioactive materials consignments. The shipper is responsible for providing the information to the operator. Shippers must keep copies of the shipper’s declaration for at least three months.
The documentation necessary for radioactive materials is very detailed and itemized instructions for completing the shipper’s declaration and the air waybill can be found in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 10.8.
Example documentation can be found in the IATA DGR sections 10.8.A and B.
In general, radioactive materials must be separated from workers and the general public. Worker exposure to radioactive materials must be limited so that they do not receive a dose in excess of 5 mSv in a year. Storage personnel must receive instructions on the hazards and precautions they need to take around radioactive materials.
Radioactive materials must be stored as far away from passengers and crew as possible. Detailed separation distances, along with other loading restrictions and limitations, can be found in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 10.9.
Additional shipment preparation procedures and requirements can be found in the IATA DGR Section 10.10.
Along with regulating the transportation of hazardous materials (hazmat) by highway, rail, and vessel, the Pipeline and Hazardous Materials Safety Administration (PHMSA), in conjunction with the Federal Aviation Administration (FAA), regulates the transport of hazmat by air in the U.S.
The Hazardous Materials Regulations (HMR) provide guidance for all modes of transportation. However, each mode of transportation differs, and the differences must be considered when transporting hazmat by a specific mode. For transport by air, differences occur in the following areas:
Hazardous material (hazmat) employees shipping or transporting hazmat by air are required to have the training detailed in 49 CFR 172.704. This includes:
Training for carriers must also include all applicable hazmat training requirements in 14 CFR Parts 121 and 135. These regulations require training for air carrier employees every two years.
Like the responsibilities for all modes of shipping, as a shipper preparing hazardous material (hazmat) for transportation by air, the carrier must:
However, the requirements are more stringent when shipping hazmat by air, so many of the packaging, marking, and labeling requirements differ from those for shipping by highway, rail, or water.
Air carriers must verify that the material, as described on the shipping documents, is authorized and within the quantity limits for passenger or cargo aircraft, respectively, as specified in the Hazardous Materials Table (HMT). Additionally, an air carrier must verify the content and accuracy of the shipping documents by asking questions, such as:
Air carriers must also determine whether the hazardous materials (hazmat) are correctly marked, labeled, and (when required) placarded. Package markings must correspond with the proper shipping name and ID number on the shipping documents. Hazmat permitted on cargo aircraft but not on passenger aircraft must be labeled with a “CARGO AIRCRAFT ONLY” label.
All packages must be in good condition for air transportation. The integrity of the package may not be compromised, and it may not be leaking. If the package has not been prepared properly or it is leaking, the carrier must refuse the package.
Passenger facility notification
Carriers that transport passengers must display signs warning passengers that the carriage of some hazmat aboard aircraft, in their luggage, or on their person is prohibited by federal law. The signs must inform passengers of special exceptions that are permitted and penalties for failure to comply with the law. Each notice must be legible and be prominently displayed so it can be seen by passengers in locations where the aircraft operator issues tickets, checks baggage, and maintains aircraft boarding areas.
Cargo facility notification
Carriers that transport cargo must display signs informing shippers of the requirements applying to air shipments of hazmat and the penalties for failure to comply with those requirements.
Packages offered or intended for air transportation must comply with the general packaging requirements in 49 CFR sections 173.24, 173.24(a), and 173.27. Unless otherwise stated, each packaging used for the shipment of hazardous materials (hazmat) must be designed, constructed, and maintained to prevent the release of the hazmat.
Proper packaging is critical to the safe transportation of hazmat, especially in air transport where the hazmat are subject to changes in temperature, altitude, and pressure.
Special requirements for Class 4, 5, and 8 materials
Even though Column 5 of the Hazardous Materials Table (HMT) shows that packages containing the following materials are in Packing Group (PG) III, they must meet performance tests at the PG II level:
Prevent leakage
Packages must be designed and constructed to prevent leakage that may be caused by internal pressure changes in altitude and temperature during air transportation.
Package closure
All packages must be securely closed. Friction-type closures on packages, such as stoppers and corks, must be held securely in place by positive means. Screw-type closures must be secured to prevent loosening from vibration or substantial changes in temperature or pressure.
For a package to be offered in accordance with the Hazardous Materials Regulations (HMRs), and for a United Nations certification to remain valid, it must be closed by the same method of closure used during testing. To ensure proper closure, the carrier should obtain closure instructions from the packaging manufacturer and close the packing as specified.
Unless otherwise noted, venting packages to reduce internal pressure is not permitted when packages are being transported by air.
Absorbent materials
Combination packages of liquids in PG I of Class 3, 4, 5, 6.1, and 8 require absorbent materials when the inner container is made of glass, earthenware, plastic, or metal. The absorbent material must be made of a substance that does react dangerously with the liquid. When a liquid hazardous material in PG I is being transported on a passenger aircraft and the regulations require absorbent material, there must be sufficient material to absorb the contents of all inner packages containing liquids.
For PG I liquids being offered for transportation on a cargo aircraft only and PG II liquids offered for transportation on passenger aircraft, there must be enough absorbent material in the package to absorb the contents of one of the inner packages. If the inner packages are different sizes, there must be enough material to absorb the contents of the packing with the greatest quantity of liquid.
Column 9 (quantity limitations) of the Hazardous Materials Table (HMT) forbids or limits the quantity of hazardous materials (hazmat) in one package that may be offered or transported by aircraft. The HMT splits the limitations into two categories: passenger aircraft and cargo aircraft. Unless otherwise specified, the quantity limits are net quantity limits. For liquids, the quantity limits refer to net volume.
When combination packages are being offered for air transport, the inner packaging must conform to the quantity limits detailed in 49 CFR section 173.27(f), Table 1 and 2. Table 1 indicates quantities permitted in inner packages for passenger aircraft. Table 2 indicates quantities permitted in inner packages for cargo aircraft.
Before an aircraft departs, the pilot-in-command must be given written notification describing all hazardous materials (hazmat) that have been loaded onto the aircraft. The operator of the aircraft must provide the pilot-in-command with accurate and legible written information as early as practicable before the departure of the aircraft.
At a minimum, the written information must specify the following:
The notification to the pilot-in-command must be readily available to the pilot during flight, as it contains information that would be critical in case of a spill.
Discrepancies are situations where hazardous materials (hazmat) are improperly described, certified, labeled, marked, or packaged in a manner that is not known at the time the air carrier accepts the shipment. This includes packages or bags that are found to contain hazmat after being offered and accepted as non-hazardous general cargo. Discrepancies can include:
If the carrier discovers a discrepancy after the shipment has been accepted, they must notify the nearest Federal Aviation Administration (FAA) Regional or Field Security Office by phone or electronically as soon as practicable.
While PHMSA and FAA regulate the transport of hazmat by air in the U.S., two international agencies have created their own versions of regulations for transport of hazmat by air. Since one version is specifically authorized by PHMSA (the International Civil Aviation Organization [ICAO] Technical Instructions [TI]) and the other is stricter than that (the International Air Transport Association Dangerous Goods Regulations, or IATA DGR), compliance with the strictest program ensures compliance with U.S. hazmat rules for air transport. ICAO is an agency of the United Nations focused on supporting diplomacy and cooperation in air transportation. ICAO’s regulations for the international transport of hazardous materials (hazmat) by air are organized in the ICAO TI. The ICAO TI are authorized by PHMSA for use within the U.S., and in some situations may be used in place of the Hazardous Materials Regulations (HMR).
The International Air Transport Association (IATA) is a trade association of airlines from around the world. IATA created its own regulations for the international transportation of dangerous goods by air, known as the IATA DGR). The IATA DGR is an easy-to-use manual based on the ICAO TI, with the exception that in some cases it is stricter than the ICAO TI.
The IATA DGR is not specifically authorized by PHMSA for use within the U.S. However, since the only difference from the ICAO TI is when the IATA DGR is stricter, compliance with the IATA DGR ensures compliance with the ICAO TI, which is authorized by PHMSA.
The following sections discuss some of the stricter requirements under IATA DGR.
IATA requires training for international transport of dangerous goods every two years, along with records of that training.
The International Air Transport Association Dangerous Goods Regulations (IATA DGR) require training for anyone performing a job function that affects the safe transportation of dangerous goods by air. The training must include:
Recurrent training must be accomplished every two years. Employers must maintain training records and assessments for their personnel. The records must include:
The list of dangerous goods in the International Air Transport Association Dangerous Goods Regulations (IATA DGR) is commonly called the “Blue Pages,” since the pages in this section of the print version are blue. The colored pages make this section easily identifiable when looking at the printed DGR from the side. The list, as in all other dangerous goods regulations, is a core section to identify the substances, mixtures, and relevant information in the regulations.
The list of dangerous goods is divided into 14 columns for each of the individual dangerous goods listed. The list is arranged in alphabetical order by the proper shipping name in Column B. To find a material, the carrier must have the proper shipping name.
Column A – UN/ID (United Nations Identification) Number
This column displays the number assigned to the material under the United Nations (UN) Classification System. When this number is used, it must be prefixed by the letters “UN.”
Column B – Proper Shipping Names
This column contains an alphabetical listing of dangerous goods articles and substances, identified by their proper shipping names, together with qualifying descriptive text. The proper shipping name is shown in bold (dark) type, whereas the descriptive text is shown in light type.
Column C – Class or division
This column lists the class or division number assigned to the article or substance. In the case of Class 1 Explosives, the compatibility group is also shown.
Column D – Labels
This column displays the hazard label(s) to be applied to the outside of each package and overpack for the material shown in Column B. The primary hazard label is listed first, followed by any subsidiary risk label(s).
Column E – Packing Group (PG)
This column contains the UN Packing Group (I, II, III) where assigned to the material.
Column F – Excepted Quantity Code
This column lists the excepted quantity code assigned to the material by packing group.
Column G – Passenger and Cargo Aircraft Limited Quantity: Packing Instructions
This column refers to the relevant Limited Quantity (Y) Packing Instructions listed in Section 5 of the IATA DGR for transport of the article or substance on a passenger or on a cargo aircraft. If the word “Forbidden” is shown, the material cannot be carried under Limited Quantity provisions.
Column H – Passenger and Cargo Aircraft Limited Quantity: Maximum Net Quantity per Package
This column shows the maximum net quantity (weight or volume) of the material allowed in each package for transport on a passenger or cargo aircraft. The weight listed is net weight, unless otherwise indicated by a letter “G,” which refers to the gross weight of the package.
Column I – Passenger and Cargo: Packing Instructions
This column refers to the Packing Instructions listed in Section 5 of the IATA DGR for transport of the material on a passenger or on a cargo aircraft.
Column J – Passenger and Cargo Aircraft: Maximum Net Quantity per Package
This column lists the maximum net quantity (weight or volume) of the material allowed in each package for transport on a passenger or cargo aircraft. The maximum quantity per package may be further restricted by the type of container used.
If the word “Forbidden” is shown, the material cannot be carried on a passenger aircraft.
Column K – Cargo Aircraft Only: Packing Instructions
This column refers to the Packing Instructions listed in Section 5 of the IATA DGR for transport of the material on cargo aircraft ONLY.
Column L – Cargo Aircraft Only: Maximum Net Quantity per Package
This column displays the maximum net quantity (weight or volume) of the material allowed in each package for transport on cargo aircraft ONLY. The maximum quantity per package may be further restricted by the type of container used.
If the word “Forbidden” is shown, the material cannot be carried on any aircraft unless exempted.
Column M – Special Provisions
This column may show an alpha-numeric character that relates to Subsection 4.4 of the IATA DGR and applies to all the packing groups permitted for the entry concerned, unless the wording of the special provision makes it otherwise apparent.
Column N – ERG (Emergency Response Guidance) Code
This column provides the Emergency Response Drill Code as found in the International Civil Aviation Organization (ICAO) document “The Emergency Response Guidance for Aircraft Incidents Involving Dangerous Goods.” The code consists of a combination of letters and numbers that represent suggested responses to incidents involving the specific dangerous good entry to which the drill code is assigned.
Section 5 of the International Air Transport Association Dangerous Goods Regulations (IATA DGR) is commonly called the “Yellow Pages,” since the pages in this section of the print version are yellow. The colored pages make this section easily identifiable when looking at the printed DGR from the side. The packing section contains the shipper’s responsibilities, general packaging requirements, and packing instructions.
Shipper’s responsibility
When preparing packages of dangerous goods for shipment by air, the shipper must:
General packaging requirements
Unless otherwise specified, the shipper must use United Nations (UN) specification packages when shipping dangerous goods by air. Dangerous goods must be packed in good quality packages that are strong enough to withstand normal loading and transportation conditions.
The parts of the package that are in direct contact with the dangerous goods must be compatible with the dangerous goods and must not:
The body and closure of the package should be constructed so that it can resist changing temperatures and vibrations normally encountered during air transportation. The closure must also be designed so that it:
Packages must be filled so they have sufficient ullage (free space) to ensure the package does leak or distort because of expansion caused by temperature changes.
Packing instruction
Columns G, I, and K of the list of dangerous goods contain a numeric or alphanumeric number that corresponds to the packing instruction for that material. The packing instruction contains general packing information along with authorized packages for the selected material.
Section 7 of the International Air Transport Association Dangerous Goods Regulations (IATA DGR) contains marking and labeling requirements for transportation by air.
For most packages, markings and labels must be placed on one side of the package. However, orientation arrows must be placed on two opposite sides of the package. Unless otherwise stated, the outside of each package must be durably and legibly marked with the:
Additionally, the IATA DGR requires certain packages to contain the following markings:
Section 7 of the IATA DGR lists two types of labels: hazard labels and handling labels. The hazard labels must be used to display the materials hazard class. The handling labels indicate precautions to be taken when handling or storing the dangerous goods. Handling labels include:
Labels must be securely affixed on a package with a contrasting background. All the dangerous goods markings and labels must be visible and legible. They must not be obscured by any text, stickers, tape, or other material.
Both shippers and carriers have documentation requirements under the International Air Transport Association Dangerous Goods Regulations (IATA DGR).
The shipper is responsible for providing dangerous goods information to the operator (carrier/airline) as stated in Section 8 of the IATA DGR. The information must be provided on a Shipper’s Declaration for Dangerous Goods. The form may be printed in black and red on white paper, or in red only. The diagonal hatchings printed vertically in the left and right margins must be printed in red.
The Shipper’s Declaration for Dangerous Goods contains the following information:
The shipper must provide the carrier with two copies of the Shipper’s Deceleration of Dangerous Goods. The carrier will keep one copy and the other copy will be sent with the shipment. Shippers must also retain a copy (paper or electronic) of the Shipper’s Declaration of Dangerous Goods for a minimum of three months.
While the Pipeline and Hazardous Materials Safety Administration (PHMSA) and Federal Aviation Administration (FAA) regulate the transport of hazardous materials (hazmat) by air in the U.S., two international agencies have created their own versions of regulations for transport of hazmat by air.
ICAO
The International Civil Aviation Organization (ICAO) is a specialized agency of the United Nations that is funded and directed by 193 member states to support diplomacy and cooperation in air transportation. One of ICAO’s responsibilities is to establish regulations for the international transport of hazardous materials. These regulations are organized in ICAO’s Technical Instructions (ICAO TI). The ICAO TI are authorized by the Pipeline and Hazardous Material Safety Administration (PHMSA) for use within the U.S., and in some situations may be used in place of the Hazardous Materials Regulations (HMR).
IATA
A third version of regulations is stricter than either the U.S. hazmat rules or the ICAO TI. The International Air Transport Association (IATA) is a trade association consisting of 290 airlines worldwide. Carrying 82% of the world’s air traffic, IATA members include many of the world’s leading passenger and cargo airlines. To make international regulations easier to understand and comply with, IATA created its own regulations for the international transportation of dangerous goods by air, known as the IATA Dangerous Goods Regulations (IATA DGR). The IATA DGR is based on the ICAO TI, but in some cases stricter.
The IATA DGR is not specifically authorized by the PHMSA for use within the U.S. However, since the IATA DGR is stricter, compliance with the IATA DGR ensures compliance with the ICAO TI, which is authorized by PHMSA.
The International Air Transport Association (IATA) regulations helps to ensure safety when dangerous goods are transported by air.
The following explanations cover the IATA regulations at a high level. This information is designed to give a general understanding of the IATA requirements and is not a replacement for the IATA regulations.
The most current and official IATA regulations must be consulted for full compliance. The IATA regulations are available by visiting www.iata.org.
The International Air Transport Association (IATA) is a trade association of approximately 290 airlines representing 117 countries from around the world. IATA member airlines are responsible for 82 percent of the world’s air traffic. Members include air carriers that operate both cargo and passenger aircraft.
IATA created its own policies for the international transportation of dangerous goods by air, known as the IATA Dangerous Goods Regulations (IATA DGR). The IATA DGR was created, in part, to reduce the risk of transporting dangerous goods by air while keeping country- and airline-specific requirements in mind. The IATA DGR is an easy-to-use manual based on the International Civil Aviation Organization (ICAO) Technical Instructions (ICAO TI).
The IATA DGR must be used by all IATA members transporting dangerous goods by air. Shippers offering dangerous goods for transportation by air with an IATA member airline must use the IATA DGR to properly classify, package, mark, label, and provide shipping papers for their cargo. The IATA DGR also applies to dangerous goods that are interlined from a non-member to a member of IATA.
The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) provide procedures for shippers and operators to safely transport articles and substances with hazardous properties by air on commercial air transport.
For the purposes of these regulations, the term “shippers” means all shippers and agents that offer consignments of dangerous goods to operators. “Operator” means a person, organization, or enterprise engaged in or offering to engage in an aircraft operation.
The detailed regulations enable shippers to correctly prepare a consignment of dangerous goods for air transport. They help freight forwarders and airline/ground handling agent dangerous goods acceptance personnel to verify that the consignment of dangerous goods complies with the requirements.
General guide to the process
The following step-by-step procedure describes how to properly classify, pack, mark, label, and document consignments of dangerous goods. However, this simplified overview is intended as guidance only. Be sure to check the full regulation text for the details that apply to each step.
When transporting cargo, it’s always good know what is considered dangerous goods. The International Air Transport Association’s (IATA) Dangerous Goods Regulations (DGR) consider dangerous goods as articles or substances which can pose a hazard to health, safety, property, or the environment and materials which are included in the list of dangerous goods.
Before any dangerous goods can be transported by air, it is extremely important that the goods are classified properly. The IATA DGR requires shippers to properly classify and identify the dangerous goods.
All aspects of the shipping process, such as packaging, marking, and labeling, are determined by how you classify your material, which is why the classification process is the single most important step when shipping dangerous goods. Classifying dangerous goods according to the IATA DGR can be done by answering three questions:
Some dangerous goods are easy to classify because the material and their hazard(s) are well known. For example, gasoline is a well-known flammable liquid. Other materials, such as mixtures or new products, may be difficult to classify because the hazards are unknown. In this case you must have the material tested to determine the hazardous properties.
Dangerous goods must meet one or more of the hazard class definitions. There are nine hazard classes listed in the International Air Transport Association’s (IATA) Dangerous Goods Regulation (DGR) — some of which are further subdivided into divisions. The definitions summarized below should be used as guidelines only. Complete specifications for each hazard class and division can be found in the IATA DGR Section 3.
Some dangerous goods are further subdivided into packing groups. The packing group indicates the degree of danger presented by the dangerous goods.
Packing groups have been developed for dangerous goods in Class 3, Class 4, Division 5.1, Division 6.1 and Class 8 materials. Some hazardous materials are assigned more than one packing group. Because packing groups impact the type of packaging that can be used, it is critical that each material is assigned to the correct one. The criteria for determining packing groups are included in the International Air Transport Association’s (IATA) Dangerous Goods Regulations (DGR) as follows:
Some substances in Class 9, liquids in Division 5.1, and waste in Division 6.2 have been assigned packing groups according to the List of Dangerous Goods. Requirements for a specific packaging performance level can be found in the applicable packing instruction.
Occasionally, there will be situations when dangerous goods meet the definition of more than one hazard class, and it’s not specifically listed by name in the List of Dangerous Goods. In this case, you must determine which of the hazard classes will be the primary hazard. Typically, the hazard class that poses the greater hazard during transport would take precedence and become the primary hazard. This determination will impact your selection of the material’s proper shipping name and ultimately, how the material is identified on the required shipper’s declaration for dangerous goods, packaged, marked, labeled, and placarded.
Dangerous goods must be classed according to the precedence of hazard table located in Section 3.10.
The International Air Transport Association (IATA) has provisions that allow a shipper to classify and ship unknown dangerous goods to a laboratory for analysis. The samples of unknown dangerous goods may be classified by the shipper and assigned a tentative shipping description, based on the:
Proper shipping name
When shipping samples of unknown dangerous goods the shipper must include the word “sample” in conjunction with the proper shipping name, for example:
When a not-otherwise-specified (n.o.s.) entry is used for the sample, the proper shipping name does not need to include the technical name.
The most severe packing group possible must be used for the selected proper shipping name.
Limitations
Samples using the exception must not be:
Self-reactive substances and organic peroxides samples must meet the conditions in IATA DGR Sections 3.4.1.2.5 and 3.5.2.6, respectively.
All samples must be transported in combination packaging with a net weight not exceeding 2.5 kgs and not packed with any other goods.
Most of us never give a second thought about the products we use every day such as our cell phones, aerosol hair spray, hand sanitizer, and lighters or e-cigarettes. These everyday products may seem harmless; however, when transported by air they can be very dangerous. Vibrations, static electricity, temperature, and pressure variations can cause items to leak, generate toxic fumes, start a fire, or even explode if they are not handled properly.
While some of these products may be too dangerous to be transported by aircraft, others may be transported by cargo aircraft only and some may be transported by passenger and cargo aircraft. The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) applies various limitations to dangerous goods transported by air to assist with keeping air travel safe.
The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) have forbidden substances with the following characteristics from being transported on aircraft. Substances are not permitted to be shipped if they are likely to:
Substances known to meet the description above are included in the List of Dangerous Goods in the IATA DGR Section 4.2. They are listed in light type (not bold) and contain the word “Forbidden” shown in Columns G – L.
Some dangerous goods may still be transported by air if listed as “Forbidden” in the List of Dangerous Goods if exempted by the appropriate country authority. The dangerous goods include:
Hidden or undeclared dangerous goods are, unfortunately, a common problem in the transportation industry. If not found, the hidden dangerous goods can cause a tragic incident, especially when transported by air. To reduce or eliminate hidden and undeclared dangerous goods, the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) require shippers offering certain commodities to verify by endorsement of the Air Waybill that no part of the package contents is dangerous. The commodities include:
The complete list of commodities can be found in the IATA DGR Section 2.2.
Commodity | Potential Hazards They May Contain |
---|---|
Aircraft Parts | Explosives, oxygen generators, paint, adhesives, batteries, fuel |
Auto Parts | Engines, carburetors, gas lines, or air bags |
Battery Powered Equipment | Wet or lithium batteries |
Breathing Apparatus | Cylinders of compressed gases or oxygen |
Camping Equipment | Batteries, flammable gas, flammable liquids, or flammable solids |
Dental Apparatus | Flammable resins/solvents, or radioactive materials |
Electrical Equipment | Magnetized materials, mercury or, wet or lithium batteries |
Frozen Foods | Dry ice |
Instruments (Barometer, thermometer) | Mercury |
Medical Equipment | Flammable liquids, oxidizers, corrosives, or batteries |
Pharmaceuticals | Flammable liquids, radioactive materials, or organic peroxides |
Photography Equipment | Lithium batteries, flammable liquids, corrosive materials, or organic peroxides |
Sporting Goods | Compressed gases, lithium batteries, propane torches, or aerosols |
Vaccines | Dry ice |
Some dangerous goods can only be transported on an aircraft if they are properly packaged, marked, and labeled by a fully qualified person. However, there are items listed in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) which may be brought onboard the aircraft by passengers and crew members, provided that the listed restrictions and limitations are adhered to.
The table in the IATA DGR Section 2.3.A provides details on the items which may be carried onboard the aircraft by passengers, in either their checked or carry-on baggage.
Some States (countries) may have more restrictive requirements for dangerous goods. The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) allow these States to have variations to the regulations for dangerous goods going to, from, or within that State. The variations are in addition to the requirements of the IATA DGR.
Airline operators have different capabilities and may not be able to accommodate all facets of dangerous goods. The IATA DGR allows airline operators to have variations to the regulations for dangerous goods being transported on their aircraft. The variations are in addition to the requirements of the IATA DGR.
The IATA DGR lists the State and operator variation code at the beginning of section that applies to all State and operators that have variations that apply to that section.
For example:
State variations
Each State (country) that has a variation in the IATA DGR is assigned a code. The code consists of three letters that identify the State, the last of which is always a “G” (Government), followed by numbers that identify the sequence of the variation.
For example, Australia’s code is AUG. Australia currently has five variations, 01-05. The third variation would be identified by AUG-03.
The List of State Variations is in Section 2.8.2. The variations are listed in alpha-numeric order according to the code assigned.
Operator variations
Each airline operator that has opted to have variations in the IATA DGR is assigned a code. The operator code is two alpha-numeric characters that identify the operator followed by numbers that identify the sequence of the variation. For example: United Parcel Service (UPS) code is 5X. UPS currently has 9 variations, 01-09. UPS’s fifth variation would be identified as 5X-05.
Every year over 1.25 million shipments of dangerous goods are transported by air, and this number is only expected to increase. With the increase in dangerous goods being shipped by air, it is imperative that safety regulations are properly adhered to.
When transporting cargo, it’s important to know what is considered dangerous goods. The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) consider dangerous goods as articles or substances which can pose a hazard to health, safety, property, or the environment and materials which are included in the list of dangerous goods.
Before any dangerous goods can be transported by air, it is extremely important that they are identified correctly. The IATA DGR requires shippers to properly classify and identify the dangerous goods.
Once familiar with and upon selecting the appropriate hazard class and packing group, the process of identifying the dangerous goods can begin. Identifying dangerous goods involves selecting the proper shipping name, selecting a generic or “not otherwise specified” (n.o.s.) name, and what to do with a mixture or solution.
If assistance is needed in identifying your dangerous goods, there are a few options available:
Proper shipping names
The List of Dangerous Goods is used to select the proper shipping name and contains approximately 3,000 substances likely to be transported by air. Using Column B in the List of Dangerous Goods, locate the name of the dangerous goods to be shipped. Only the names in bold type are proper shipping names. Portions of an entry that are not in bold type are not part of the proper shipping name but may be used.
If the UN or ID number of the substance is known, but not the proper shipping name, use the Cross-reference list to locate the proper shipping name. Then, locate the substance in the List of Dangerous Goods to access additional shipping information.
Generic and n.o.s. names
If the name of the substance you are shipping is not contained in the List of Dangerous Goods, you must first make sure it is not forbidden for transport by referring to the IATA DGR Section 2.1. If your substance is not forbidden, select a generic or “not otherwise specified” (n.o.s.) description, found in the List of Generic and n.o.s. Proper Shipping Names of Section 4.1, that most accurately describes your material. For example:
Generic or n.o.s. proper shipping names followed by a star symbol must include a technical or chemical group name.
Mixtures and solutions
Dangerous goods that are a mixture or solution of one or more substances must be identified by the proper shipping name of the predominant substance. The appropriate word “mixture” or “solution” must be added to the proper shipping name. The applicable concentration of the mixture or solution may also be indicated in the proper shipping name. For example: Acetone 80% solution.
Keep in mind that if a mixture or solution is combined with a substance not considered a dangerous good and is diluted to a point where it no longer meets the definition of any hazard class, it would no longer be regulated by the IATA DGR.
When dangerous goods are shipped via air, the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) require that detailed information about the shipment must accompany the dangerous goods. There are two types of documentation required for an air shipment: the “Shipper’s Declaration of Dangerous Goods” (Shipper’s Declaration) and the air waybill. Each document has specific requirements, but the Shipper’s Declaration is the primary document for providing details on the dangerous goods shipment.
The Shipper’s Declaration can be provided:
Regardless of the method used, all required information must be provided.
Shippers have documentation requirements under the IATA DGR. The shipper is responsible for providing dangerous goods information to the operator (carrier/airline) as stated in the IATA DGR Section 8. Shippers must ensure the information provided on the forms is accurate and legible, and signed when provided to the operator at the time of shipment.
The Shipper’s Declaration must meet very detailed specifications, including:
Shippers must avoid adding any irrelevant information on the declaration. If both dangerous goods and non-dangerous goods are listed on the declaration, the dangerous goods must be listed first or highlighted or emphasized in some way to call them out.
If a Shipper’s Declaration form was created by a computer, then the form must still meet the specifications identified in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR).
The “Shipper’s Declaration for Dangerous Goods” form must be completed strictly according to the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 8.1.6, “Detailed Instructions for Completing the Declaration Form.” The shipper is required to enter all details on the Shipper’s Declaration, except that the “Air waybill number,” “Airport of Departure,” and “Airport of Destination,” may be entered or amended by the shipper, the shipper’s agent, or by the operator. Any other details can be entered only by the shipper, or persons/organizations employed by the shipper to act on the shipper’s behalf.
The Shipper’s Declaration for Dangerous Goods must contain the following information:
In addition, other information may be required by the national authority depending on the mode of transport. For example, this additional information could include the flash point or flash point range in degrees Celsius.
Copies and recordkeeping
If using paper declarations, the shipper must provide the operator with two signed copies of the Shipper’s Declaration. The operator will keep one copy and the other copy will be sent with the shipment. Carbon copies are acceptable. Only the original operator is required to keep the copy; if a shipment is transhipped, a photocopy is acceptable.
If the declaration is via electronic data processing (EDP) or electronic data interchange (EDI), the data must be able to immediately be produced as a hard copy paper document, including all of the pertinent details.
The shipper is required to keep the Shipper’s Declaration for at least three months. If the declarations are kept electronically, the shipper must be able to print them.
The following dangerous goods do not require a Shipper’s Declaration:
Special circumstances
Take note of the following special circumstances surrounding the Shipper’s Declaration:
Additional documentation required
The following additional documentation requirements must be followed when applicable:
If: | Then: |
---|---|
Dangerous goods are shipped as authorized by Special Provision A1 or A2 | They must be accompanied by:
|
Dangerous goods are shipped in:
| They must be accompanied by a copy of approval document(s). |
Organic peroxides and self-reactive substances require an approval prior to transport under the provisions of 3.5.2.3.1 or 3.4.1.2.4.1 | A copy of the approval must be attached to the Shipper’s Declaration. |
Dangerous goods are shipped under exemption (see 1.2.6) | A copy of the exemption from all applicable States must accompany the consignment. |
Air waybills are simply documents that give more detail about the cargo being shipped. When dangerous goods are involved, air waybills have additional requirements as provided in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 8.2.
The “Handling Information” section of an air waybill accompanying dangerous goods must include:
If a Shipper’s Declaration is not required for the shipment, the “Nature and Quantity of Goods” box on an air waybill must show the following:
Excepted quantities
The requirements specified above for the “Handling Information” and “Nature and Quantity of Goods” do not apply to “excepted quantities of dangerous goods,” but the air waybill must reflect this information. The air waybill’s “Nature and Quantity of Goods” box must state, “Dangerous Goods in Excepted Quantities” along with the number of packages (unless these are the only packages within the consignment).
When dangerous goods are shipped via air under the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR), packages must meet the marking and labeling requirements.
The person or entity offering the dangerous goods for transportation by air (the shipper) is responsible for the appropriate markings and labels for packages, including the markings and labels for overpacks. The shipper must ensure packagings are big enough to accommodate all required markings and labels.
Unless otherwise stated in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR), the outside of each package must be durably and legibly marked with the:
Note there are special marking requirements for the following materials; consult the IATA DGR for more details:
Outer packagings containing more than one dangerous good must be marked for each dangerous good.
Marking specifications and sizes
The UN/ID number and “overpack” marks must be at least 12 mm high. If a package meets any one of the following, the UN/ID number must be at least 6 mm high:
The UN/ID number must be reduced, but still viewable (an appropriate size), if a package is 5 liters capacity or less or 5 kilograms maximum net weight.
Overpack marks displaying the word “Overpack” should be 6 millimeters if the packages are 30 liters or 30 kilograms capacity or less.
Limited quantity markings
Dangerous goods in limited quantities must be marked with the limited quantities marking. The marking is as follows:
Each side of the marking must be 100 mm (approximately 4 inches) and the black diamond outline must be 2 mm wide.
If necessary to fit onto the package, the marking can be made smaller. The marking can be no less than 50 mm per side, with the black diamond outline at least 1 mm wide.
Salvage markings
Salvage packaging must be marked with the dangerous good’s proper shipping name and the UN number. The package must also have “SALVAGE” marked on the package in letters at least 12 mm high.
Markings on empty packagings
Except for Class 7 materials, an empty package that previously contained dangerous goods requires markings unless it has been thoroughly cleaned and purged (in the case of infectious substances, before it can be returned to the shipper or shipped to another place, the empty packaging must be thoroughly disinfected/sanitized).
Lithium battery markings
Lithium battery shipments are required to display this lithium battery marking, with a minimum dimension of 100 millimeters high by 100 millimeters wide, with hatching at least 5 mm wide:
A lithium battery marking may be reduced in size if the size of the package requires it, but no less than 100 millimeters by 70 millimeters.
If the UN/ID number varies among the types of batteries in a single package, then all UN/ID numbers must be indicated on one or more markings.
In certain cases, lithium battery packages must display both the lithium battery mark and the lithium battery Class 9 hazard label. See the IATA DGR Section 7.1.5.5.4 for more details.
Orientation arrows
Arrows (other than orientation arrows) cannot be placed on a package or overpack containing liquid dangerous goods.
Overpack markings
If the markings aren’t visible through the overpack, then the overpack must be marked accordingly. An “overpack” marking must appear on the outside of the overpack along with other required markings (except for net quantity of each package, unless the overpack contains UN1845, the total quantity of dry ice within the overpack must be marked).
However, if an overpack contains more than one UN number, then the total quantity of dangerous goods should be shown by UN number.
If a shipment contains more than one overpack, then each one must have some type of identification along with the total quantity of dangerous goods.
Limited quantity markings are also required on the overpack, unless the limited quantity marking on the packages is visible.
When labeling a package, shippers have certain responsibilities under the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) when a package or overpack is offered to the operator for shipment. Shippers must remove or cover any irrelevant labeling on packages or overpacks. They must ensure that labels are durable and meet the specifications in the regulations (color, size, etc.). Shippers must also ensure labels are placed in the appropriate spot, on a contrasting background (or outlined with a dotted line or solid line), and include any additional details as required.
Packages must be labeled for each dangerous substance in a package.
Label specifications and sizes
Generally, labels must be diamond-shaped and be at least 100 millimeters by 100 millimeters. They require a line inside the edge of the label forming a diamond that’s about 5 millimeters from the outside of the line to the edge of the label. Labels must display the class or division number.
“Worded” labels are acceptable (the hazard can be provided on the lower half of the label in addition to the division number or compatibility group). See the IATA DGR Section 7.3 for hazard labels and Section 7.4 for handling label colors, sizes, specifications, and examples.
Label placement
Empty packaging labels
If a package once contained dangerous goods, it must be marked and labeled as if it still contained the dangerous goods; however, if the packaging has been thoroughly cleaned and purged (or disinfected if it contained infectious substances), labels are not required.
Other labels
See the IATA DGR Sections 7.4.4 through 7.4.G for handling labels specifications for the following labels:
Package orientation labels aren’t required on certain types of packages; for example, liquid dangerous goods in inner packages containing 120 milliliters or less (packed in absorbent materials) or dangerous goods in inner packagings not exceeding 500 milliliters that are packed in gas-tight packagings. See the IATA DGR Section 7.2.4.4 for a complete listing.
Other markings and labels
Markings that indicate how a package must be handled or stored, or symbols on labels that indicate this information, can also be displayed on a package if appropriate. International Organization for Standardization (ISO) symbols are recommended.
Operators have responsibilities under the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) when accepting, handling, and loading dangerous goods. Operators may impose additional requirements when transporting dangerous goods. Ground handling agents can carry out the functions of an operator.
The complete instructions for accepting, handling, and loading dangerous goods can be found in the IATA DGR Section 9. Some dangerous goods materials may require special handling; see the IATA DGR Section 9.3 for details:
Material | Reference IATA DGR section number |
---|---|
Magnetized materials | 9.3.9 |
Dry ice (carbon dioxide, solid) | 9.3.10 |
Cryogenic liquids | 9.3.11 |
Expandable polymeric beads and plastics moulding compound | 9.3.12 |
Live animals | 9.3.13 |
Wheelchairs or other battery-powered mobility aids as checked baggage | 9.3.14 |
Self-reactive substances and organic peroxides | 9.3.15 |
Intermediate bulk containers (IBCs) | 9.3.16 |
Operators’ acceptance staff must be trained to identify and detect dangerous goods present as general cargo. Information about the following must be provided to cargo acceptance staff:
Staff should seek confirmation from shippers about the contents of any item of cargo if there are suspicions that it contains dangerous goods to help prevent undeclared dangerous goods on an aircraft. Many ordinary looking items may contain dangerous goods; for example, car parts, electrical equipment, household goods, and battery-powered devices/equipment. See a complete listing in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 2.2.
Operators are prohibited from accepting packages or overpacks with dangerous goods or a unit load device containing dangerous goods, or a freight container containing radioactive material for transport aboard an aircraft unless one of the following is met:
If a Shipper’s Declaration is used, then one copy of the declaration form must accompany the consignment to final destination, and the other copy must be retained by the operator at a location on the ground where it’s available to access.
If the information is provided electronically, the information must be available to the operator during transport and the data must be able to be produced as a paper document. If a paper document is provided, the data must be presented as required by IATA DGR Section 8.
Before a consignment is first accepted for carriage by air, the operator must use a checklist to verify:
Operators must identify the person who performs the check.
There are exceptions to these procedures; see the table in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 9.1.3.3.
Dangerous goods cannot be carried in the aircraft cabin with passengers or on the flight deck (unless permitted under certain parts of the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR)).
Dangerous goods may be carried in a main deck cargo compartment of a passenger aircraft provided that the compartment meets all the certification requirements.
Dangerous goods that could react with one another cannot be stowed together on an aircraft. Segregation requirements can be found in the IATA DGR Section 9.3.2.
If a dangerous good displays the “Cargo Aircraft Only” label, then it is prohibited on passenger aircraft. If the shipment is for cargo aircraft only, then one of the following loading provisions apply:
There are some exceptions to this requirement provided in the IATA DGR Section 9.3.4.3.
Operators are required to ensure dangerous goods packages are protected from damage. Packages must be secure to prevent movement during transport.
Packages and overpacks must be inspected to ensure they are not leaking or damaged. Before loading on an aircraft, unit load devices must be free of leaks or damage.
If labels are lost or illegible, the operator is required to replace them (does not apply if the labels are missing or illegible when the package is accepted).
Before unloading from the aircraft or unit load device, packages and overpacks must be inspected for signs of damage or leaking. If damage or leaks are found, the area around the dangerous goods on the aircraft must be inspected for damage or contamination. Any contamination must be removed.
If packages contain infectious substances and are found to be damaged or leaking, the person who noticed the issue must avoid handling the package (or keep handling to a minimum), inspect surrounding areas, inform the public health authority or veterinary authority in the countries of transit to inform them of the potential danger, and notify the shipper and/or the consignee.
As soon as possible prior to the aircraft’s departure (but not after the aircraft moves under its own power), the operator of an aircraft in which dangerous goods are to be carried must:
The notification must include the items provided for in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 9.5.1.1.
Operators must report:
If there is an aircraft accident or serious incident where dangerous goods are involved, the operator immediately must provide information to emergency services responding to the accident or serious incident. The information includes data about the dangerous goods on board, as shown on the information to the pilot-in-command.
The operator must immediately provide the same information to the State authorities of the operator and the State in which the accident or serious incident occurred. The information must also be shared with emergency services responding to the incident.
Operators must report to their State when:
Operators must ensure training is provided to employees to enable them to carry out the dangerous goods transportation functions regarding passengers and their baggage, and cargo and mail. The training requirements can be found in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 1.5.
Operators must keep at least one copy of the documents or information appropriate to the transport by air of a dangerous goods consignment, for a minimum period of three months after the flight on which the dangerous goods were transported.
At a minimum, the documents which must be retained are the Shipper’s Declaration for Dangerous Goods and other applicable transport documents, the acceptance checklist (when this is in a form which requires completion), the identification of the person who performed the acceptance check and the written information to the pilot-in-command.
These documents or the information must be made available to the appropriate national authority upon request.
If a package or overpack containing dangerous goods or freight container containing radioactive material or unit load device containing dangerous goods was not accepted by an operator because of an error or omission by the shipper in packaging, labeling, marking or documentation, then a copy of the documentation and the checklist (when this is in a form which requires completion), and the identification of the person who performed the acceptance check should be retained for a minimum period of three months after the completion of the acceptance checklist.
If documents or information are kept electronically or in a computer system, they should be capable of being printed.
When dangerous goods are shipped via air under the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR), the shipper is responsible for all aspects of packing the dangerous goods. Transporting dangerous goods by air requires safety measures beyond those that apply to other modes of transport, including:
Shipper responsibilities
When preparing dangerous goods for transport by air, the shipper must:
The shipper must ensure that dangerous goods are placed only in approved freight containers or unit load devices.
States and operators commonly submit variations to the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR). Always check for applicable variations to packing requirements, which are listed in the IATA DGR Section 2.8:
Substances assigned to packing groups by experience rather than through the application of any technical criteria are shown in the List of Dangerous Goods. The list also indicates the packing group to which a listed substance is assigned. The packing group criteria for the classes and divisions are given in the IATA DGR Section 3.
Radioactive materials
The general packing requirements of this subsection do not apply to Class 7 Radioactive Materials. When packing radioactive materials, the shipper must comply with the packing instructions, packaging specifications, and performance testing in the IATA DGR Section 10.
Dangerous goods packagings must be strong enough to withstand the shocks and loadings normally encountered in transport. Packages must prevent any loss of contents that might be caused:
All packages, inner packagings, and receptacles must be closed according to manufacturer instructions. No dangerous residue may adhere to the outside of packages during transport. This applies to all packaging, including new, reconditioned, and remanufactured.
During shipping, packages regularly move between different modes of transport, from vehicles into warehouses and then onto aircraft, for example. To avoid damage and leakage from packages during transport, shippers should take this into account when selecting appropriate packaging or determining the suitability of an already packaged item.
Because of this, when transporting single steel or aluminum packagings in narrow-bodied aircraft, always provide overpacks, pallets, or another means to protect the bottom head and chime against abrasive effects experienced in loading the aircraft.
Also use overpacks for small single packagings (with a capacity of 2 L or less) to:
Manufacturers and subsequent distributors of packagings must provide:
Packaging test requirements
New, remanufactured, reused, or reconditioned packagings must meet the requirements of the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 6. The packagings must be manufactured and tested under a quality assurance program to ensure that they meet the applicable requirements.
Temperature and vibration resistance
The body and the closure of any packaging must be constructed to resist the effects of temperature and vibration that occur in normal conditions of transport. The closure device must be designed so it:
Closures on inner packagings containing liquids must be held securely, tightly, and effectively in place by secondary means.
When secondary means of closure cannot be used, the inner packaging must be:
Internal pressure standards
Packagings designed to retain liquid must be capable of withstanding, without leakage, an internal pressure that produces a pressure differential of the greater of the following:
The pressure related to the vapor pressure must be determined by one of the methods described in the IATA DGR Section 5.0.2.9.
Packagings for liquids
Packaging that will contain liquids must successfully pass a test showing it is leak-proof:
Packagings for solids that may become liquid
Packagings used for solids that may become liquid at temperatures encountered during air transport must be able to contain that substance in the liquid state.
Packagings for solids (both inner and single) that may be permitted by the packing instruction should not be used if they are unsuitable for containing liquids. For example, paper or plastic bags as inner packagings or unlined fiber drums as single packagings should not be used.
Where single packagings are permitted for these substances, only single packagings approved for solid materials may be used.
Inner packagings must be packed, secured, or cushioned in outer packaging so that they cannot:
Inner packagings containing liquids must be:
Inner packagings that could break or be punctured easily must be secured in the outer packagings with suitable cushioning material. Any leakage of contents must not impair the protective properties of the cushioning material or of the outer packaging.
“Inner packaging” versus “inner receptacle”
The inners of combination packagings are termed “inner packagings.” A glass bottle is an example of such an inner packaging.
The inners of composite packagings are termed “inner receptacles.” For example, the inner of a 6HA1 composite packaging is an “inner receptacle,” since it is not designed to perform a containment function without its outer packaging.
Using different inner packagings
If an outer packaging of a combination packaging has been successfully tested with different types of inner packagings, a variety of those different inner packagings may be assembled in the outer packaging.
If an equivalent level of performance is maintained, the following variations in inner packagings are also allowed without further testing of the package:
Overpacks used to enclose packages of dangerous goods must meet the following requirements:
The overpack may not impair the intended function of any inner package.
The overpack may also contain packages of goods not subject to the DGR.
Shippers are advised to check for applicable variations, which are listed in the IATA DGR Section 2.8. Numerous operator variations exist for using overpacks.
Package/Overpack reuse
Before reusing a packaging or an overpack, the shipper must remove or completely obliterate all inappropriate dangerous goods marks and labels.
Not all packages are intended to be reused for shipments of dangerous goods. When a package meets the conditions of the Dangerous Goods Packing Test Requirements and may be reused, the shipper must have access to:
Salvage packaging
Numerous operator variations exist for using salvage packaging. Be sure to check for applicable variations, which are listed in the IATA DGR Section 2.8. Damaged, defective, leaking, or non-conforming packages, or dangerous goods that have spilled or leaked, may be transported in salvage packagings that meet certain requirements.
To use salvage packagings, shippers must:
Salvage packagings must be single packagings of material that is resistant to any chemical or other action of the leaking or spilled dangerous goods. Only one damaged, defective, or leaking package may be packed in any single salvage packaging.
Damaged, defective, or leaking packages of certain dangerous goods of Classes 1, 2 and 7 and Division 6.2 must not be transported in salvage packagings. An exception to this restriction is available for clinical waste and medical waste under UN 3291.
Damaged, defective, or leaking packages of certain self-reactive substances in Division 4.1 or substances in Division 5.2 must not be transported in metal salvage packagings meeting Packing Group I requirements.
Parts of packagings that are in direct contact with dangerous goods:
Where necessary, the packagings must include a suitable inner coating or treatment.
Shippers must also ensure that absorbent materials and the materials of intermediate packagings for liquids do not react dangerously with the liquid.
Materials may not be used if they can be significantly softened or rendered brittle or permeable:
While certain packagings are specified in individual packing instructions, it is the responsibility of the shipper to ensure that all packagings are in every way compatible with the articles or substances contained in those packagings. Pay particular attention to the following:
Shippers must:
An outer packaging may contain more than one item of dangerous goods or other goods only as follows:
Additional requirements for packages containing radioactive material are found the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 10.5.
The calculated “Q” value must be:
UN 3316 is not permitted in the same outer packaging with other dangerous goods.
Certain lithium metal and lithium ion batteries are not permitted in the same outer packaging with most other dangerous goods.
For dangerous goods where the maximum quantity per package has a packing instruction reference shown in Column J or L in the List of Dangerous Goods, check and comply with the maximum net quantity per package as shown in the packing instruction.
The nature and the thickness of outer packaging must prevent friction during transport that could generate heat and alter the chemical stability of the contents.
Venting of packagings to reduce internal pressure that may develop by the evolution of gas from the contents is not permitted for air transport, except as specifically noted in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR).
With few exceptions, combination packagings with inner packagings containing liquid dangerous goods must be packed so that the closures on the inner packagings are upward. The upright position of the package must be indicated by the “Package Orientation” label. The words “This Side Up” or “This End Up” may also be displayed on the top cover of the package.
Orientation arrows are not required on outer packagings of combination packagings containing:
A package must be large enough to affix all required marks and labels.
Empty packaging that has contained dangerous goods must be treated the same as a package filled with that substance (including identifying, marking, labeling, and placarding) unless any hazard has been nullified. Acceptable methods of nullifying hazards include purging and thorough flushing of the packaging with a neutralizing agent.
Before an empty packaging that previously contained an infectious substance is referred to the shipper or sent elsewhere, the shipper must:
Freight containers, packagings, and overpacks used to transport radioactive material may only be used to store or transport other goods if decontaminated below the following levels:
When using wet ice as a coolant, it must not affect the integrity of the packaging.
In some cases, the authority of the State of origin may approve the use of packaging alternatives to those provided in the List of Dangerous Goods. The alternative packaging must meet the requirements of the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Sections 5.0.2 to 5.0.4.
When the List of Dangerous Goods specifies packagings listed in Table 5.0.C, the alternative packaging must also meet the requirements of Section 6 of the DGR.
For the type of alternative packaging being considered, the phrases “Not used in these Regulations” or “Specialized use only” may not appear in Table 5.0.C.
The State of origin must determine that the alternative packaging provides at least the same level of safety as if the substance were packed according to the method specified in the packing instruction in the List of Dangerous Goods.
The maximum net quantity of dangerous goods in the packaging may not exceed the quantity specified in the List of Dangerous Goods.
A copy of the document of approval must accompany each consignment being transported in the alternative packaging.
The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) specify package specifications, tests, and specification markings requirements for UN specification packages, packagings for refrigerated liquid gases, and limited quantity packagings. Two or three character codes are used for designating packaging (other than inner packagings).
Packaging type code | Packaging material code | Package qualifying codes |
---|---|---|
1 — Drum 2 — Reserved 3 — Jerrican 4 — Box 5 — Bag 6 — Composite packaging | A — Steel (all types and surface treatments) B — Aluminum C — Natural wood D — Plywood F — Reconstituted wood G — Fiberboard H — Plastic material L — Textile M — Paper, multi-wall N — Metal (other than steel or aluminum) P — Glass, porcelain, or stoneware (not used in these Regulations) | Some packagings show a code after the package code, with meanings as follows: — The letter “V” means a “Special Packaging” conforming to the requirements in IATA DGR Section 6.3.1.2, exemption from testing. “U” signifies a “Special Packaging” for infectious substances conforming to the requirements in IATA DGR Section 6.5.2. — The letter “W” signifies that the packaging, although of the same type indicated by the code, is manufactured to a specification different from that in IATA DGR Section 6.2 and is considered equivalent. — The letter “T” signifies a “Salvage Packaging” conforming to the requirements of IATA DGR Sections 5.0.1.6, 6.0.6, and Section 6.7. |
Other than for aerosols, the three or four character code is used to identify the type and material and construction and performance test standard, inner packagings are identified based on the material from which they are manufactured.
Specification markings indicate the packaging meets the tested design type. They’re meant to assist package manufacturers, package users, operators, and others.
Most single packagings and all outer packagings of combination packagings and of composite packagings that have been manufactured and tested must show durable, legible markings. If a package has a gross weight exceeding 30 kilograms, the marks must appear on the top or on the side of the package. The lettering must be at least 12 millimeters high (except for packagings of 30 liters capacity or less or of 30 kilograms maximum net weight; then they need to be at least 6 millimeters high).
If a packaging has a 5 liter capacity or less or 5 kilograms maximum net weight, the letters, numbers, and symbols must be an appropriate size.
Markings consist of the following:
Details for markings for metal drums and recycled plastic material can be found in the IATA DGR Sections 6.0.4.3 and 6.0.4.4.
Plastic, glass, and metal inner packagings must be well constructed. The following requirements also apply to inner packagings:
Marking reconditioned and remanufactured UN specification packagings
Most packagings that undergo a reconditioning process must bear the proper markings in a permanent form.
Salvage packagings
The requirements for markings on salvage packagings can be found in the IATA DGR Section 6.0.6.
Specifications and testing UN packaging
The specifications and testing for UN outer, single, and composite packaging can be found in the IATA DGR Sections 6.2 and 6.3. Manufacturers must comply with the criteria in these sections.
Construction and testing of cylinders, cryogenic receptacles, aerosol dispensers, and gas cartridges
Details on the construction and testing of cylinders, cryogenic receptacles, aerosol dispensers, and gas cartridges can be found in the IATA DGR Section 6.4.
Infectious substance packagings (Category A)
Details on infectious substance packagings can be found in the IATA DGR Section 6.5.
Tests for limited quantity packagings
Limited quantity packagings must undergo drop tests and stacking tests:
Construction and testing of IBCs
The IATA DGR Section 6.8 covers the construction and testing of intermediate bulk containers (IBCs) used for the air transport of “UN3077, Environmentally hazardous substance , solid, n.o.s.”
The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) address the transportation of radioactive materials by air.
The primary goal of the IATA’s radioactive materials requirements is to protect the general public, property, and the environment from radiation during transport by air. This is done by ensuring the packaging is appropriate for the radioactive material, placing administrative controls on the transport of the radioactive material (and if appropriate, approvals by competent authorities), and ensuring emergency response procedures are in place prior to transport.
The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) apply to the air transport of radioactive materials. This includes packaging design and packaging manufacturing along with the preparation of a radioactive material for loading/unloading, offering a radioactive material for transportation, and in-transit storage of the material.
The following sections of the IATA DGR are applicable to the transport of radioactive materials by air:
Certain radioactive materials are prohibited for transport on an aircraft, for example, packages that require external cooling systems, explosives, and pyrophoric liquids.
The IATA DGR on radioactive materials does not apply to:
Specific provisions for excepted packages can be found in the IATA DGR Section 10.0.1.5.
Radioactive material transportation must be done under a Radiation Protection Program, which must adequately address radiation protection measures. The program must address measures that will be taken to keep doses to persons below dose limits and to keep exposures as low as possible. These measures must be related to the significance and chances of radiation exposures. Finally, the program must address applicable emergency response procedures.
If the competent authority requests to see the program documents, then such documents must be available to the competent authority.
More details on the Radiation Protection Program can be found in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 10.0.2.
A Management System, acceptable to the competent authority, must be in place to ensure compliance with the regulations is maintained. More details can be found in the IATA DGR Section 10.0.3.
Details on the classification of radioactive materials must be referenced in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 10.3.
Radioactive materials are assigned a proper shipping name as provided in the IATA DGR Section 10.4, Table 10.4.A. This section also includes a classification flowchart to help determine proper shipping name.
Radioactive materials packing is the responsibility of the shipper. Shippers must follow the package and packaging requirements found in the IATA DGR Sections 10.5 and 10.6.
Radioactive material packages, overpacks, or freight containers must be marked appropriately by the shipper. Markings must be durable, visible, able to withstand weather exposure, and displayed in a color that is in contrast with the background. In addition to the language required by the State of origin, English must be used.
The following markings are required on radioactive materials in Industrial Package Types IP-1, IP-2, and IP-3, Type A, Type B(U), Type B(M), and Type C packages:
Specific markings are required for Type A Packages, Type B Packages, Type C Packages, and Fissile Packages, which can be found in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Sections 10.7.1.3.4 through 10.7.1.3.7.
The “UN” letters must be at least 12 mm high, except if the packagings are 30 liters or 30 kilograms capacity or less, then they must be at least 6 mm in height (for packagings of 5 L or 5 kg or less when they must be of an appropriate size).
Package and overpack marks should be at least 12 mm high, except for packages of 30 L or 30 kg capacity or less when they should be at least 6 mm high.
When a shipper is preparing a package or an overpack containing radioactive material, the shipper is required to:
Overpacks
Unless all marks for dangerous goods in the overpack are visible, the overpack must be marked with:
In addition to marking, the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) require the shipper to label radioactive material packages, overpacks, or freight containers. Labels must be durable with a minimum dimension of 100 mm by 100 mm and diamond shaped. There must be an inside line about 5 mm from the edge of the diamond. The upper half of the label is reserved for the trefoil symbol and the lower half is for text and the class number (except for the Criticality Safety Index label (CSI)).
On a package of adequate size, place one set of labels on the same surface of the package near the proper shipping name mark. Labels must be placed next to the shipper’s or consignee’s address. If subsidiary labels apply, affix them next to the primary hazard labels on the same surface of the package.
If a “Cargo Aircraft Only” handling label is necessary, place it on the same surface as all other hazard labels. It must always be used on Type B(M) packages and on freight containers with such packages. Orientation labels are not necessary.
The Radioactive Material label together with any subsidiary hazard label(s), the Criticality Safety Index label (if applicable) and the “Cargo Aircraft Only” label (if applicable) must be affixed to two opposite sides of the package.
Comply with the following number of labels on a package or container:
Package or container type | Requirements |
---|---|
Freight container | Affix labels to all four sides of the container |
Cylindrical package | Affix two sets of labels opposite each other such that they are centered on opposite points of the circumference |
Very small packages including cylinders, where the two sets of labels would overlap | Only one label is required, provided it does not overlap itself |
Rigid overpack | Two sets of labels, affixed to opposite sides of the overpack |
Non-rigid overpack | Affix one set of labels to a durable tag secured to the overpack |
Shippers must for packages and overpacks:
Subsidiary hazard labels
If the radioactive material has other hazardous properties in one or more other hazard class, then the package must display the subsidiary label (except for non-flammable, non-toxic non-compressed gases).
Criticality Safety Index (CSI) label
Packages of fissile materials must display the Criticality Safety Index (CSI) label next to the radioactive hazard label.
Label markings
On labels, the contents, activity, and the transport index (on Category II and III Yellow labels) must be marked on the label. The Criticality Safety Index (CSI) must be displayed on a CSI label.
Contents must be as follows:
Activity means the maximum activity of the radioactive contents. It must be marked in becquerel (or multiples). The activity in curies (or multiples) can be provided in parentheses after the becquerel units. Use full or correct abbreviations of units. In the case of fissile materials, provide the total mass of fissile nuclides in grams or kilograms (and clearly indicate all units).
The transportation index determined by the IATA DGR Section 10.5.14.1 must be placed in the box provided, rounded up to one decimal place (tenths).
The Criticality Safety Index (CSI) must be placed in the box provided. If in an overpack or freight container, the CSI is the sum of the indexes of all packages in the container. For information on excepted packages of radioactive materials labeling, refer to the IATA DGR section 10.7.4.4.3.
Placarding large containers
Freight containers with radioactive materials must display four placards in addition to the labels. It is an option to display enlarged radioactive material labels that meet the IATA DGR Sections 10.7.7.1 to 10.7.7.3 (and if appropriate 10.7.7.4).
The shipper’s declaration of dangerous goods and an air waybill must be completed for radioactive materials consignments. The shipper is responsible for providing the information to the operator. Shippers must keep copies of the shipper’s declaration for at least three months.
The documentation necessary for radioactive materials is very detailed and itemized instructions for completing the shipper’s declaration and the air waybill can be found in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 10.8.
Example documentation can be found in the IATA DGR sections 10.8.A and B.
In general, radioactive materials must be separated from workers and the general public. Worker exposure to radioactive materials must be limited so that they do not receive a dose in excess of 5 mSv in a year. Storage personnel must receive instructions on the hazards and precautions they need to take around radioactive materials.
Radioactive materials must be stored as far away from passengers and crew as possible. Detailed separation distances, along with other loading restrictions and limitations, can be found in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 10.9.
Additional shipment preparation procedures and requirements can be found in the IATA DGR Section 10.10.
The International Air Transport Association (IATA) is a trade association of approximately 290 airlines representing 117 countries from around the world. IATA member airlines are responsible for 82 percent of the world’s air traffic. Members include air carriers that operate both cargo and passenger aircraft.
IATA created its own policies for the international transportation of dangerous goods by air, known as the IATA Dangerous Goods Regulations (IATA DGR). The IATA DGR was created, in part, to reduce the risk of transporting dangerous goods by air while keeping country- and airline-specific requirements in mind. The IATA DGR is an easy-to-use manual based on the International Civil Aviation Organization (ICAO) Technical Instructions (ICAO TI).
The IATA DGR must be used by all IATA members transporting dangerous goods by air. Shippers offering dangerous goods for transportation by air with an IATA member airline must use the IATA DGR to properly classify, package, mark, label, and provide shipping papers for their cargo. The IATA DGR also applies to dangerous goods that are interlined from a non-member to a member of IATA.
The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) provide procedures for shippers and operators to safely transport articles and substances with hazardous properties by air on commercial air transport.
For the purposes of these regulations, the term “shippers” means all shippers and agents that offer consignments of dangerous goods to operators. “Operator” means a person, organization, or enterprise engaged in or offering to engage in an aircraft operation.
The detailed regulations enable shippers to correctly prepare a consignment of dangerous goods for air transport. They help freight forwarders and airline/ground handling agent dangerous goods acceptance personnel to verify that the consignment of dangerous goods complies with the requirements.
General guide to the process
The following step-by-step procedure describes how to properly classify, pack, mark, label, and document consignments of dangerous goods. However, this simplified overview is intended as guidance only. Be sure to check the full regulation text for the details that apply to each step.
When transporting cargo, it’s always good know what is considered dangerous goods. The International Air Transport Association’s (IATA) Dangerous Goods Regulations (DGR) consider dangerous goods as articles or substances which can pose a hazard to health, safety, property, or the environment and materials which are included in the list of dangerous goods.
Before any dangerous goods can be transported by air, it is extremely important that the goods are classified properly. The IATA DGR requires shippers to properly classify and identify the dangerous goods.
All aspects of the shipping process, such as packaging, marking, and labeling, are determined by how you classify your material, which is why the classification process is the single most important step when shipping dangerous goods. Classifying dangerous goods according to the IATA DGR can be done by answering three questions:
Some dangerous goods are easy to classify because the material and their hazard(s) are well known. For example, gasoline is a well-known flammable liquid. Other materials, such as mixtures or new products, may be difficult to classify because the hazards are unknown. In this case you must have the material tested to determine the hazardous properties.
Dangerous goods must meet one or more of the hazard class definitions. There are nine hazard classes listed in the International Air Transport Association’s (IATA) Dangerous Goods Regulation (DGR) — some of which are further subdivided into divisions. The definitions summarized below should be used as guidelines only. Complete specifications for each hazard class and division can be found in the IATA DGR Section 3.
Some dangerous goods are further subdivided into packing groups. The packing group indicates the degree of danger presented by the dangerous goods.
Packing groups have been developed for dangerous goods in Class 3, Class 4, Division 5.1, Division 6.1 and Class 8 materials. Some hazardous materials are assigned more than one packing group. Because packing groups impact the type of packaging that can be used, it is critical that each material is assigned to the correct one. The criteria for determining packing groups are included in the International Air Transport Association’s (IATA) Dangerous Goods Regulations (DGR) as follows:
Some substances in Class 9, liquids in Division 5.1, and waste in Division 6.2 have been assigned packing groups according to the List of Dangerous Goods. Requirements for a specific packaging performance level can be found in the applicable packing instruction.
Occasionally, there will be situations when dangerous goods meet the definition of more than one hazard class, and it’s not specifically listed by name in the List of Dangerous Goods. In this case, you must determine which of the hazard classes will be the primary hazard. Typically, the hazard class that poses the greater hazard during transport would take precedence and become the primary hazard. This determination will impact your selection of the material’s proper shipping name and ultimately, how the material is identified on the required shipper’s declaration for dangerous goods, packaged, marked, labeled, and placarded.
Dangerous goods must be classed according to the precedence of hazard table located in Section 3.10.
The International Air Transport Association (IATA) has provisions that allow a shipper to classify and ship unknown dangerous goods to a laboratory for analysis. The samples of unknown dangerous goods may be classified by the shipper and assigned a tentative shipping description, based on the:
Proper shipping name
When shipping samples of unknown dangerous goods the shipper must include the word “sample” in conjunction with the proper shipping name, for example:
When a not-otherwise-specified (n.o.s.) entry is used for the sample, the proper shipping name does not need to include the technical name.
The most severe packing group possible must be used for the selected proper shipping name.
Limitations
Samples using the exception must not be:
Self-reactive substances and organic peroxides samples must meet the conditions in IATA DGR Sections 3.4.1.2.5 and 3.5.2.6, respectively.
All samples must be transported in combination packaging with a net weight not exceeding 2.5 kgs and not packed with any other goods.
Dangerous goods must meet one or more of the hazard class definitions. There are nine hazard classes listed in the International Air Transport Association’s (IATA) Dangerous Goods Regulation (DGR) — some of which are further subdivided into divisions. The definitions summarized below should be used as guidelines only. Complete specifications for each hazard class and division can be found in the IATA DGR Section 3.
Some dangerous goods are further subdivided into packing groups. The packing group indicates the degree of danger presented by the dangerous goods.
Packing groups have been developed for dangerous goods in Class 3, Class 4, Division 5.1, Division 6.1 and Class 8 materials. Some hazardous materials are assigned more than one packing group. Because packing groups impact the type of packaging that can be used, it is critical that each material is assigned to the correct one. The criteria for determining packing groups are included in the International Air Transport Association’s (IATA) Dangerous Goods Regulations (DGR) as follows:
Some substances in Class 9, liquids in Division 5.1, and waste in Division 6.2 have been assigned packing groups according to the List of Dangerous Goods. Requirements for a specific packaging performance level can be found in the applicable packing instruction.
Occasionally, there will be situations when dangerous goods meet the definition of more than one hazard class, and it’s not specifically listed by name in the List of Dangerous Goods. In this case, you must determine which of the hazard classes will be the primary hazard. Typically, the hazard class that poses the greater hazard during transport would take precedence and become the primary hazard. This determination will impact your selection of the material’s proper shipping name and ultimately, how the material is identified on the required shipper’s declaration for dangerous goods, packaged, marked, labeled, and placarded.
Dangerous goods must be classed according to the precedence of hazard table located in Section 3.10.
The International Air Transport Association (IATA) has provisions that allow a shipper to classify and ship unknown dangerous goods to a laboratory for analysis. The samples of unknown dangerous goods may be classified by the shipper and assigned a tentative shipping description, based on the:
Proper shipping name
When shipping samples of unknown dangerous goods the shipper must include the word “sample” in conjunction with the proper shipping name, for example:
When a not-otherwise-specified (n.o.s.) entry is used for the sample, the proper shipping name does not need to include the technical name.
The most severe packing group possible must be used for the selected proper shipping name.
Limitations
Samples using the exception must not be:
Self-reactive substances and organic peroxides samples must meet the conditions in IATA DGR Sections 3.4.1.2.5 and 3.5.2.6, respectively.
All samples must be transported in combination packaging with a net weight not exceeding 2.5 kgs and not packed with any other goods.
Most of us never give a second thought about the products we use every day such as our cell phones, aerosol hair spray, hand sanitizer, and lighters or e-cigarettes. These everyday products may seem harmless; however, when transported by air they can be very dangerous. Vibrations, static electricity, temperature, and pressure variations can cause items to leak, generate toxic fumes, start a fire, or even explode if they are not handled properly.
While some of these products may be too dangerous to be transported by aircraft, others may be transported by cargo aircraft only and some may be transported by passenger and cargo aircraft. The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) applies various limitations to dangerous goods transported by air to assist with keeping air travel safe.
The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) have forbidden substances with the following characteristics from being transported on aircraft. Substances are not permitted to be shipped if they are likely to:
Substances known to meet the description above are included in the List of Dangerous Goods in the IATA DGR Section 4.2. They are listed in light type (not bold) and contain the word “Forbidden” shown in Columns G – L.
Some dangerous goods may still be transported by air if listed as “Forbidden” in the List of Dangerous Goods if exempted by the appropriate country authority. The dangerous goods include:
Hidden or undeclared dangerous goods are, unfortunately, a common problem in the transportation industry. If not found, the hidden dangerous goods can cause a tragic incident, especially when transported by air. To reduce or eliminate hidden and undeclared dangerous goods, the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) require shippers offering certain commodities to verify by endorsement of the Air Waybill that no part of the package contents is dangerous. The commodities include:
The complete list of commodities can be found in the IATA DGR Section 2.2.
Commodity | Potential Hazards They May Contain |
---|---|
Aircraft Parts | Explosives, oxygen generators, paint, adhesives, batteries, fuel |
Auto Parts | Engines, carburetors, gas lines, or air bags |
Battery Powered Equipment | Wet or lithium batteries |
Breathing Apparatus | Cylinders of compressed gases or oxygen |
Camping Equipment | Batteries, flammable gas, flammable liquids, or flammable solids |
Dental Apparatus | Flammable resins/solvents, or radioactive materials |
Electrical Equipment | Magnetized materials, mercury or, wet or lithium batteries |
Frozen Foods | Dry ice |
Instruments (Barometer, thermometer) | Mercury |
Medical Equipment | Flammable liquids, oxidizers, corrosives, or batteries |
Pharmaceuticals | Flammable liquids, radioactive materials, or organic peroxides |
Photography Equipment | Lithium batteries, flammable liquids, corrosive materials, or organic peroxides |
Sporting Goods | Compressed gases, lithium batteries, propane torches, or aerosols |
Vaccines | Dry ice |
Some dangerous goods can only be transported on an aircraft if they are properly packaged, marked, and labeled by a fully qualified person. However, there are items listed in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) which may be brought onboard the aircraft by passengers and crew members, provided that the listed restrictions and limitations are adhered to.
The table in the IATA DGR Section 2.3.A provides details on the items which may be carried onboard the aircraft by passengers, in either their checked or carry-on baggage.
Some States (countries) may have more restrictive requirements for dangerous goods. The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) allow these States to have variations to the regulations for dangerous goods going to, from, or within that State. The variations are in addition to the requirements of the IATA DGR.
Airline operators have different capabilities and may not be able to accommodate all facets of dangerous goods. The IATA DGR allows airline operators to have variations to the regulations for dangerous goods being transported on their aircraft. The variations are in addition to the requirements of the IATA DGR.
The IATA DGR lists the State and operator variation code at the beginning of section that applies to all State and operators that have variations that apply to that section.
For example:
State variations
Each State (country) that has a variation in the IATA DGR is assigned a code. The code consists of three letters that identify the State, the last of which is always a “G” (Government), followed by numbers that identify the sequence of the variation.
For example, Australia’s code is AUG. Australia currently has five variations, 01-05. The third variation would be identified by AUG-03.
The List of State Variations is in Section 2.8.2. The variations are listed in alpha-numeric order according to the code assigned.
Operator variations
Each airline operator that has opted to have variations in the IATA DGR is assigned a code. The operator code is two alpha-numeric characters that identify the operator followed by numbers that identify the sequence of the variation. For example: United Parcel Service (UPS) code is 5X. UPS currently has 9 variations, 01-09. UPS’s fifth variation would be identified as 5X-05.
The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) have forbidden substances with the following characteristics from being transported on aircraft. Substances are not permitted to be shipped if they are likely to:
Substances known to meet the description above are included in the List of Dangerous Goods in the IATA DGR Section 4.2. They are listed in light type (not bold) and contain the word “Forbidden” shown in Columns G – L.
Some dangerous goods may still be transported by air if listed as “Forbidden” in the List of Dangerous Goods if exempted by the appropriate country authority. The dangerous goods include:
Hidden or undeclared dangerous goods are, unfortunately, a common problem in the transportation industry. If not found, the hidden dangerous goods can cause a tragic incident, especially when transported by air. To reduce or eliminate hidden and undeclared dangerous goods, the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) require shippers offering certain commodities to verify by endorsement of the Air Waybill that no part of the package contents is dangerous. The commodities include:
The complete list of commodities can be found in the IATA DGR Section 2.2.
Commodity | Potential Hazards They May Contain |
---|---|
Aircraft Parts | Explosives, oxygen generators, paint, adhesives, batteries, fuel |
Auto Parts | Engines, carburetors, gas lines, or air bags |
Battery Powered Equipment | Wet or lithium batteries |
Breathing Apparatus | Cylinders of compressed gases or oxygen |
Camping Equipment | Batteries, flammable gas, flammable liquids, or flammable solids |
Dental Apparatus | Flammable resins/solvents, or radioactive materials |
Electrical Equipment | Magnetized materials, mercury or, wet or lithium batteries |
Frozen Foods | Dry ice |
Instruments (Barometer, thermometer) | Mercury |
Medical Equipment | Flammable liquids, oxidizers, corrosives, or batteries |
Pharmaceuticals | Flammable liquids, radioactive materials, or organic peroxides |
Photography Equipment | Lithium batteries, flammable liquids, corrosive materials, or organic peroxides |
Sporting Goods | Compressed gases, lithium batteries, propane torches, or aerosols |
Vaccines | Dry ice |
Some dangerous goods can only be transported on an aircraft if they are properly packaged, marked, and labeled by a fully qualified person. However, there are items listed in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) which may be brought onboard the aircraft by passengers and crew members, provided that the listed restrictions and limitations are adhered to.
The table in the IATA DGR Section 2.3.A provides details on the items which may be carried onboard the aircraft by passengers, in either their checked or carry-on baggage.
Some States (countries) may have more restrictive requirements for dangerous goods. The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) allow these States to have variations to the regulations for dangerous goods going to, from, or within that State. The variations are in addition to the requirements of the IATA DGR.
Airline operators have different capabilities and may not be able to accommodate all facets of dangerous goods. The IATA DGR allows airline operators to have variations to the regulations for dangerous goods being transported on their aircraft. The variations are in addition to the requirements of the IATA DGR.
The IATA DGR lists the State and operator variation code at the beginning of section that applies to all State and operators that have variations that apply to that section.
For example:
State variations
Each State (country) that has a variation in the IATA DGR is assigned a code. The code consists of three letters that identify the State, the last of which is always a “G” (Government), followed by numbers that identify the sequence of the variation.
For example, Australia’s code is AUG. Australia currently has five variations, 01-05. The third variation would be identified by AUG-03.
The List of State Variations is in Section 2.8.2. The variations are listed in alpha-numeric order according to the code assigned.
Operator variations
Each airline operator that has opted to have variations in the IATA DGR is assigned a code. The operator code is two alpha-numeric characters that identify the operator followed by numbers that identify the sequence of the variation. For example: United Parcel Service (UPS) code is 5X. UPS currently has 9 variations, 01-09. UPS’s fifth variation would be identified as 5X-05.
Every year over 1.25 million shipments of dangerous goods are transported by air, and this number is only expected to increase. With the increase in dangerous goods being shipped by air, it is imperative that safety regulations are properly adhered to.
When transporting cargo, it’s important to know what is considered dangerous goods. The International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) consider dangerous goods as articles or substances which can pose a hazard to health, safety, property, or the environment and materials which are included in the list of dangerous goods.
Before any dangerous goods can be transported by air, it is extremely important that they are identified correctly. The IATA DGR requires shippers to properly classify and identify the dangerous goods.
Once familiar with and upon selecting the appropriate hazard class and packing group, the process of identifying the dangerous goods can begin. Identifying dangerous goods involves selecting the proper shipping name, selecting a generic or “not otherwise specified” (n.o.s.) name, and what to do with a mixture or solution.
If assistance is needed in identifying your dangerous goods, there are a few options available:
Proper shipping names
The List of Dangerous Goods is used to select the proper shipping name and contains approximately 3,000 substances likely to be transported by air. Using Column B in the List of Dangerous Goods, locate the name of the dangerous goods to be shipped. Only the names in bold type are proper shipping names. Portions of an entry that are not in bold type are not part of the proper shipping name but may be used.
If the UN or ID number of the substance is known, but not the proper shipping name, use the Cross-reference list to locate the proper shipping name. Then, locate the substance in the List of Dangerous Goods to access additional shipping information.
Generic and n.o.s. names
If the name of the substance you are shipping is not contained in the List of Dangerous Goods, you must first make sure it is not forbidden for transport by referring to the IATA DGR Section 2.1. If your substance is not forbidden, select a generic or “not otherwise specified” (n.o.s.) description, found in the List of Generic and n.o.s. Proper Shipping Names of Section 4.1, that most accurately describes your material. For example:
Generic or n.o.s. proper shipping names followed by a star symbol must include a technical or chemical group name.
Mixtures and solutions
Dangerous goods that are a mixture or solution of one or more substances must be identified by the proper shipping name of the predominant substance. The appropriate word “mixture” or “solution” must be added to the proper shipping name. The applicable concentration of the mixture or solution may also be indicated in the proper shipping name. For example: Acetone 80% solution.
Keep in mind that if a mixture or solution is combined with a substance not considered a dangerous good and is diluted to a point where it no longer meets the definition of any hazard class, it would no longer be regulated by the IATA DGR.
Once familiar with and upon selecting the appropriate hazard class and packing group, the process of identifying the dangerous goods can begin. Identifying dangerous goods involves selecting the proper shipping name, selecting a generic or “not otherwise specified” (n.o.s.) name, and what to do with a mixture or solution.
If assistance is needed in identifying your dangerous goods, there are a few options available:
Proper shipping names
The List of Dangerous Goods is used to select the proper shipping name and contains approximately 3,000 substances likely to be transported by air. Using Column B in the List of Dangerous Goods, locate the name of the dangerous goods to be shipped. Only the names in bold type are proper shipping names. Portions of an entry that are not in bold type are not part of the proper shipping name but may be used.
If the UN or ID number of the substance is known, but not the proper shipping name, use the Cross-reference list to locate the proper shipping name. Then, locate the substance in the List of Dangerous Goods to access additional shipping information.
Generic and n.o.s. names
If the name of the substance you are shipping is not contained in the List of Dangerous Goods, you must first make sure it is not forbidden for transport by referring to the IATA DGR Section 2.1. If your substance is not forbidden, select a generic or “not otherwise specified” (n.o.s.) description, found in the List of Generic and n.o.s. Proper Shipping Names of Section 4.1, that most accurately describes your material. For example:
Generic or n.o.s. proper shipping names followed by a star symbol must include a technical or chemical group name.
Mixtures and solutions
Dangerous goods that are a mixture or solution of one or more substances must be identified by the proper shipping name of the predominant substance. The appropriate word “mixture” or “solution” must be added to the proper shipping name. The applicable concentration of the mixture or solution may also be indicated in the proper shipping name. For example: Acetone 80% solution.
Keep in mind that if a mixture or solution is combined with a substance not considered a dangerous good and is diluted to a point where it no longer meets the definition of any hazard class, it would no longer be regulated by the IATA DGR.
When dangerous goods are shipped via air, the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) require that detailed information about the shipment must accompany the dangerous goods. There are two types of documentation required for an air shipment: the “Shipper’s Declaration of Dangerous Goods” (Shipper’s Declaration) and the air waybill. Each document has specific requirements, but the Shipper’s Declaration is the primary document for providing details on the dangerous goods shipment.
The Shipper’s Declaration can be provided:
Regardless of the method used, all required information must be provided.
Shippers have documentation requirements under the IATA DGR. The shipper is responsible for providing dangerous goods information to the operator (carrier/airline) as stated in the IATA DGR Section 8. Shippers must ensure the information provided on the forms is accurate and legible, and signed when provided to the operator at the time of shipment.
The Shipper’s Declaration must meet very detailed specifications, including:
Shippers must avoid adding any irrelevant information on the declaration. If both dangerous goods and non-dangerous goods are listed on the declaration, the dangerous goods must be listed first or highlighted or emphasized in some way to call them out.
If a Shipper’s Declaration form was created by a computer, then the form must still meet the specifications identified in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR).
The “Shipper’s Declaration for Dangerous Goods” form must be completed strictly according to the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 8.1.6, “Detailed Instructions for Completing the Declaration Form.” The shipper is required to enter all details on the Shipper’s Declaration, except that the “Air waybill number,” “Airport of Departure,” and “Airport of Destination,” may be entered or amended by the shipper, the shipper’s agent, or by the operator. Any other details can be entered only by the shipper, or persons/organizations employed by the shipper to act on the shipper’s behalf.
The Shipper’s Declaration for Dangerous Goods must contain the following information:
In addition, other information may be required by the national authority depending on the mode of transport. For example, this additional information could include the flash point or flash point range in degrees Celsius.
Copies and recordkeeping
If using paper declarations, the shipper must provide the operator with two signed copies of the Shipper’s Declaration. The operator will keep one copy and the other copy will be sent with the shipment. Carbon copies are acceptable. Only the original operator is required to keep the copy; if a shipment is transhipped, a photocopy is acceptable.
If the declaration is via electronic data processing (EDP) or electronic data interchange (EDI), the data must be able to immediately be produced as a hard copy paper document, including all of the pertinent details.
The shipper is required to keep the Shipper’s Declaration for at least three months. If the declarations are kept electronically, the shipper must be able to print them.
The following dangerous goods do not require a Shipper’s Declaration:
Special circumstances
Take note of the following special circumstances surrounding the Shipper’s Declaration:
Additional documentation required
The following additional documentation requirements must be followed when applicable:
If: | Then: |
---|---|
Dangerous goods are shipped as authorized by Special Provision A1 or A2 | They must be accompanied by:
|
Dangerous goods are shipped in:
| They must be accompanied by a copy of approval document(s). |
Organic peroxides and self-reactive substances require an approval prior to transport under the provisions of 3.5.2.3.1 or 3.4.1.2.4.1 | A copy of the approval must be attached to the Shipper’s Declaration. |
Dangerous goods are shipped under exemption (see 1.2.6) | A copy of the exemption from all applicable States must accompany the consignment. |
Air waybills are simply documents that give more detail about the cargo being shipped. When dangerous goods are involved, air waybills have additional requirements as provided in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 8.2.
The “Handling Information” section of an air waybill accompanying dangerous goods must include:
If a Shipper’s Declaration is not required for the shipment, the “Nature and Quantity of Goods” box on an air waybill must show the following:
Excepted quantities
The requirements specified above for the “Handling Information” and “Nature and Quantity of Goods” do not apply to “excepted quantities of dangerous goods,” but the air waybill must reflect this information. The air waybill’s “Nature and Quantity of Goods” box must state, “Dangerous Goods in Excepted Quantities” along with the number of packages (unless these are the only packages within the consignment).
The Shipper’s Declaration must meet very detailed specifications, including:
Shippers must avoid adding any irrelevant information on the declaration. If both dangerous goods and non-dangerous goods are listed on the declaration, the dangerous goods must be listed first or highlighted or emphasized in some way to call them out.
If a Shipper’s Declaration form was created by a computer, then the form must still meet the specifications identified in the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR).
The “Shipper’s Declaration for Dangerous Goods” form must be completed strictly according to the International Air Transport Association (IATA) Dangerous Goods Regulations (DGR) Section 8.1.6, “Detailed Instructions for Completing the Declaration Form.” The shipper is required to enter all details on the Shipper’s Declaration, except that the “Air waybill number,” “Airport of Departure,” and “Airport of Destination,” may be entered or amended by the shipper, the shipper’s agent, or by the operator. Any other details can be entered only by the shipper, or persons/organizations employed by the shipper to act on the shipper’s behalf.
The Shipper’s Declaration for Dangerous Goods must contain the following information:
In addition, other information may be required by the national authority depending on the mode of transport. For example, this additional information could include the flash point or flash point range in degrees Celsius.
Copies and recordkeeping
If using paper declarations, the shipper must provide the operator with two signed copies of the Shipper’s Declaration. The operator will keep one copy and the other copy will be sent with the shipment. Carbon copies are acceptable. Only the original operator is required to keep the copy; if a shipment is transhipped, a photocopy is acceptable.
If the declaration is via electronic data processing (EDP) or electronic data interchange (EDI), the data must be able to immediately be produced as a hard copy paper document, including all of the pertinent details.
The shipper is required to keep the Shipper’s Declaration for at least three months. If the declarations are kept electronically, the shipper must be able to print them.
